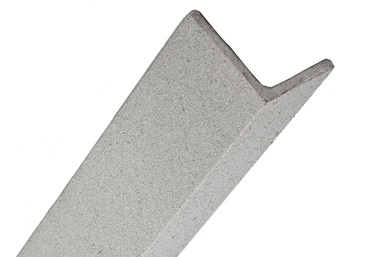

6063 Aluminum 90° Angles
| 6063 Aluminum 90° Angles, T5 Temper ASTM B221, Dimensions External |
||||||
| Part # | Thickness | Thickness Tolerance | Arm Length | Arm Length Tolerance | Length | Price |
|---|---|---|---|---|---|---|
| DMA-079 | .125" | +/-0.007" | .500" | +/-0.010" | 48" | $25.57 |
| DMA-080 | .125" | +/-0.007" | .750" | +/-0.010" | 48" | $35.18 |
| DMA-081 | .125" | +/-0.007" | 1.00" | +/-0.012" | 48" | $19.62 |
| DMA-082 | .125" | +/-0.007" | 1.25" | +/-0.012" | 48" | $59.55 |
| DMA-083 | .125" | +/-0.007" | 1.50" | +/-0.014" | 48" | $32.02 |
| DMA-084 | .125" | +/-0.007" | 1.75" | +/-0.014" | 48" | $72.82 |
| DMA-085 | .125" | +/-0.007" | 2.00" | +/-0.024" | 48" | $43.00 |
| DMA-086 | .125" | +/-0.007" | 4.00" | +/-0.034" | 48" | $87.29 |
| DMA-087 | .187" | +/-0.007" | 1.00" | +/-0.012" | 48" | $68.98 |
| DMA-088 | .187" | +/-0.007" | 1.25" | +/-0.012" | 48" | $73.98 |
| DMA-089 | .187" | +/-0.007" | 1.50" | +/-0.014" | 48" | $94.06 |
| DMA-090 | .187" | +/-0.007" | 2.00" | +/-0.024" | 48" | $110.74 |
| DMA-091 | .187" | +/-0.007" | 3.00" | +/-0.024" | 48" | $87.40 |
