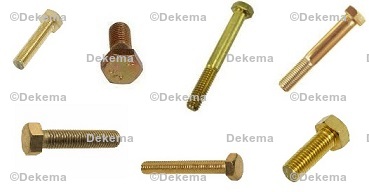

Metric Brass Bolts
| Metric Brass Bolts - Fully Threaded | ||||||
| Part # | Thread Size | Overall Length | Head Width | Head Height | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|
| Bolt-4780 | M5 x 0.8 | 10mm | 8mm | 3.5mm | 20 | $32.76 |
| Bolt-4781 | M5 x 0.8 | 12mm | 8mm | 3.5mm | 20 | $27.67 |
| Bolt-4782 | M5 x 0.8 | 16mm | 8mm | 3.5mm | 20 | $40.40 |
| Bolt-4783 | M5 x 0.8 | 20mm | 8mm | 3.5mm | 20 | $40.27 |
| Bolt-4784 | M5 x 0.8 | 25mm | 8mm | 3.5mm | 20 | $37.12 |
| Bolt-4785 | M5 x 0.8 | 30mm | 8mm | 3.5mm | 10 | $23.50 |
| Bolt-4786 | M6 x 1 | 10mm | 10mm | 4mm | 10 | $24.34 |
| Bolt-4787 | M6 x 1 | 12mm | 10mm | 4mm | 10 | $21.40 |
| Bolt-4788 | M6 x 1 | 16mm | 10mm | 4mm | 10 | $23.52 |
| Bolt-4789 | M6 x 1 | 20mm | 10mm | 4mm | 10 | $30.17 |
| Bolt-4790 | M6 x 1 | 25mm | 10mm | 4mm | 10 | $16.75 |
| Bolt-4791 | M6 x 1 | 30mm | 10mm | 4mm | 10 | $17.57 |

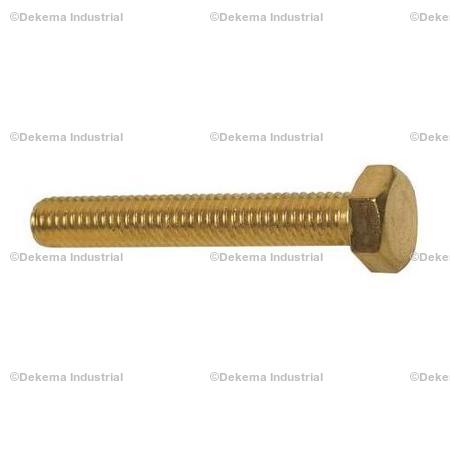

| Bolt-4792 | M6 x 1 | 40mm | 10mm | 4mm | 10 | $28.89 |
| Bolt-4793 | M6 x 1 | 50mm | 10mm | 4mm | 5 | $24.44 |
| Bolt-4794 | M8 x 1.25 | 12mm | 13mm | 5.3mm | 5 | $25.28 |
| Bolt-4795 | M8 x 1.25 | 16mm | 13mm | 5.3mm | 5 | $32.06 |
| Bolt-4796 | M8 x 1.25 | 20mm | 13mm | 5.3mm | 5 | $12.51 |
| Bolt-4797 | M8 x 1.25 | 25mm | 13mm | 5.3mm | 5 | $14.95 |
| Bolt-4798 | M8 x 1.25 | 30mm | 13mm | 5.3mm | 5 | $17.20 |
| Bolt-4799 | M8 x 1.25 | 35mm | 13mm | 5.3mm | 5 | $38.72 |
| Bolt-4800 | M8 x 1.25 | 40mm | 13mm | 5.3mm | 5 | $19.78 |
| Bolt-4801 | M8 x 1.25 | 50mm | 13mm | 5.3mm | 5 | $36.83 |
| Bolt-4802 | M10 x 1.5 | 20mm | 17mm | 6.4mm | 5 | $28.28 |
| Bolt-4803 | M10 x 1.5 | 25mm | 17mm | 6.4mm | 5 | $42.82 |
| Bolt-4804 | M10 x 1.5 | 30mm | 17mm | 6.4mm | 5 | $29.92 |
| Bolt-4805 | M10 x 1.5 | 35mm | 17mm | 6.4mm | 5 | $46.91 |
| Bolt-4806 | M10 x 1.5 | 40mm | 17mm | 6.4mm | 5 | $38.59 |
| Bolt-4807 | M10 x 1.5 | 50mm | 17mm | 6.4mm | 5 | $64.76 |
| Bolt-4808 | M12 x 1.75 | 25mm | 19mm | 7.5mm | 5 | $67.28 |
| Bolt-4809 | M12 x 1.75 | 40mm | 19mm | 7.5mm | 5 | $52.37 |
| Bolt-4810 | M12 x 1.75 | 50mm | 19mm | 7.5mm | 5 | $116.74 |
