Fiberglass Flange Bolts
RH Threads, Fully Threaded, Gray
| Part # | Thread Size | Overall Length | Flange Diameter | Head Width | Head Height | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|
| Bolt-4932 | 1/4"-20 | .500" | .560" | 3/8" | 9/32" | 10 | $23.71 |
| Bolt-4933 | 1/4"-20 | .625" | .560" | 3/8" | 9/32" | 10 | $26.08 |
| Bolt-4934 | 1/4"-20 | .750" | .560" | 3/8" | 9/32" | 10 | $27.49 |
| Bolt-4935 | 1/4"-20 | .875" | .560" | 3/8" | 9/32" | 10 | $26.22 |
| Bolt-4936 | 1/4"-20 | 1.00" | .560" | 3/8" | 9/32" | 10 | $27.49 |
| Bolt-4937 | 1/4"-20 | 1.25" | .560" | 3/8" | 9/32" | 10 | $30.22 |
| Bolt-4938 | 1/4"-20 | 1.50" | .560" | 3/8" | 9/32" | 10 | $31.47 |
| Bolt-4939 | 3/8"-16 | .500" | .800" | 9/16" | 25/64" | 10 | $24.86 |
| Bolt-4940 | 3/8"-16 | .750" | .800" | 9/16" | 25/64" | 10 | $26.33 |
| Bolt-4941 | 3/8"-16 | .875" | .800" | 9/16" | 25/64" | 10 | $29.00 |
| Bolt-4942 | 3/8"-16 | 1.00" | .800" | 9/16" | 25/64" | 10 | $30.28 |
| Bolt-4943 | 3/8"-16 | 1.25" | .800" | 9/16" | 25/64" | 10 | $31.16 |
| Bolt-4944 | 3/8"-16 | 1.50" | .800" | 9/16" | 25/64" | 5 | $19.00 |
| Bolt-4948 | 1/2"-13 | .750" | 1.059" | 3/4" | 1/2" | 10 | $25.95 |

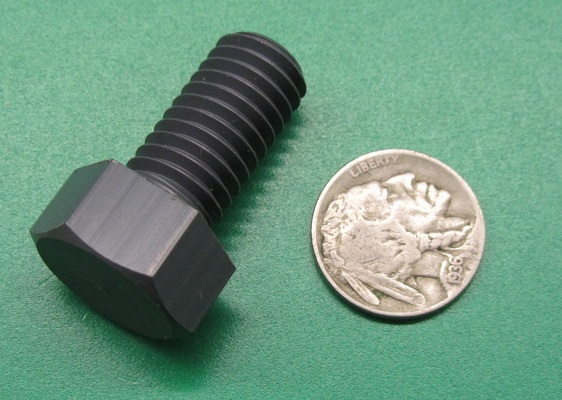

| Bolt-4949 | 1/2"-13 | 1.00" | 1.059" | 3/4" | 1/2" | 10 | $30.28 |
| Bolt-4950 | 1/2"-13 | 1.25" | 1.059" | 3/4" | 1/2" | 5 | $16.82 |
| Bolt-4951 | 1/2"-13 | 1.50" | 1.059" | 3/4" | 1/2" | 5 | $18.69 |
| Bolt-4952 | 1/2"-13 | 2.00" | 1.059" | 3/4" | 1/2" | 5 | $24.21 |
| Bolt-4953 | 1/2"-13 | 2.50" | 1.059" | 3/4" | 1/2" | 5 | $26.12 |
| Fiberglass Flange Bolts Partially Threaded | ||||||||
| Part # | Thread Length | Thread Size | Overall Length | Flange Diameter | Head Width | Head Height | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|
| Bolt-4945 | 1-1/2" | 3/8"-16 | 2.00" | .800" | 9/16" | 25/64" | 5 | $20.43 |
| Bolt-4946 | 1-3/4" | 3/8"-16 | 2.50" | .800" | 9/16" | 25/64" | 5 | $24.02 |
| Bolt-4947 | 2" | 3/8"-16 | 3.00" | .800" | 9/16" | 25/64" | 5 | $25.93 |

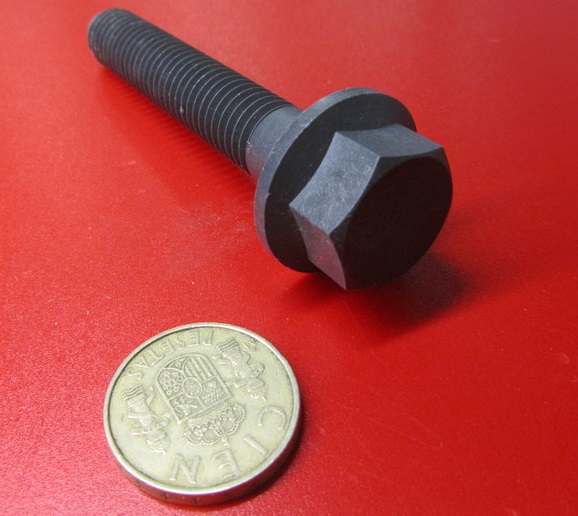

| Bolt-4954 | 2-1/2" | 1/2"-13 | 3.00" | 1.059" | 3/4" | 1/2" | 5 | $33.37 |
| Bolt-4955 | 2-1/2" | 1/2"-13 | 3.50" | 1.059" | 3/4" | 1/2" | 5 | $39.67 |
| Bolt-4956 | 2" | 1/2"-13 | 4.00" | 1.059" | 3/4" | 1/2" | 5 | $46.28 |
