Fiberglass Bolts
RH Threads, Gray
| Fiberglass Bolts, Full Threads | ||||||
| Part # | Thread Size | Overall Length | Head Width | Head Height | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|
| Bolt-4908 | 1/4"-20 | .500" | 7/16" | 13/64" | 10 | $23.18 |
| Bolt-4909 | 1/4"-20 | .750" | 7/16" | 13/64" | 10 | $25.07 |
| Bolt-4910 | 1/4"-20 | 1.00" | 7/16" | 13/64" | 10 | $26.33 |
| Bolt-4911 | 1/4"-20 | 1.25" | 7/16" | 13/64" | 10 | $27.17 |
| Bolt-4912 | 1/4"-20 | 1.50" | 7/16" | 13/64" | 10 | $31.75 |
| Bolt-4915 | 3/8"-16 | 1.50" | 9/16" | 1/4" | 10 | $27.17 |
| Bolt-4919 | 5/8"-11 | 1.50" | 15/16" | 13/32" | 5 | $25.49 |
| Bolt-4920 | 5/8"-11 | 2.00" | 15/16" | 13/32" | 5 | $27.63 |
| Bolt-4921 | 5/8"-11 | 2.50" | 15/16" | 13/32" | 5 | $32.11 |

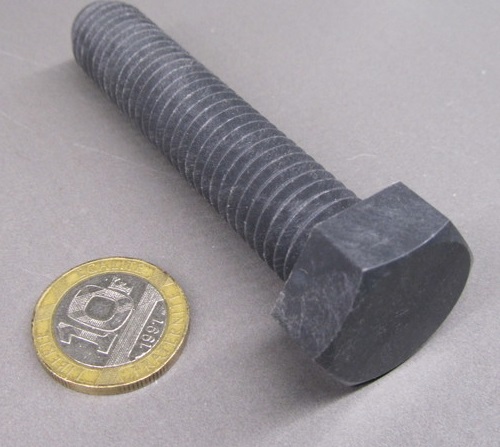

| Bolt-4922 | 5/8"-11 | 3.00" | 15/16" | 13/32" | 5 | $32.11 |
| Bolt-4923 | 5/8"-11 | 3.50" | 15/16" | 13/32" | 5 | $37.88 |
| Bolt-4924 | 5/8"-11 | 4.00" | 15/16" | 13/32" | 5 | $38.09 |

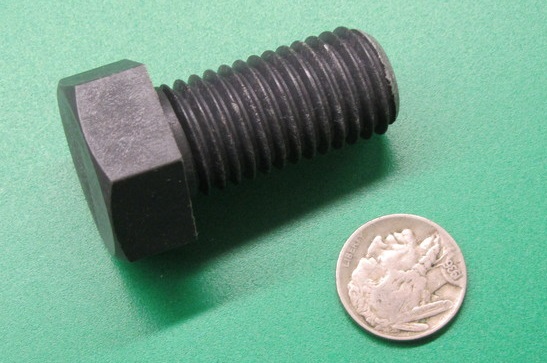

| Bolt-4926 | 3/4"-10 | 1.50" | 1-1/8" | 15/32" | 5 | $32.84 |
| Bolt-4927 | 3/4"-10 | 2.00" | 1-1/8" | 15/32" | 5 | $39.67 |
| Fiberglass Bolts, Partial Threads | |||||||
| Part # | Thread Length | Thread Size | Overall Length | Head Width | Head Height | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|
| Bolt-4913 | 1-1/4" | 5/16"-18 | 1.50" | 1/2" | 7/32" | 10 | $27.17 |
| Bolt-4914 | 1-1/2" | 5/16"-18 | 2.00" | 1/2" | 7/32" | 5 | $17.40 |
| Bolt-4916 | 1-1/2" | 3/8"-16 | 2.00" | 9/16" | 1/4" | 5 | $17.30 |
| Bolt-4917 | 1-3/4" | 3/8"-16 | 2.50" | 9/16" | 1/4" | 5 | $19.90 |
| Bolt-4918 | 2" | 3/8"-16 | 3.00" | 9/16" | 1/4" | 5 | $22.38 |
| Bolt-4925 | 2-3/4" | 5/8"-11 | 5.00" | 15/16" | 13/32" | 1 | $20.93 |
| Bolt-4928 | 2-1/4" | 3/4"-10 | 2.50" | 1-1/8" | 15/32" | 5 | $45.23 |
| Bolt-4929 | 2-1/4" | 3/4"-10 | 3.00" | 1-1/8" | 15/32" | 5 | $49.64 |
| Bolt-4930 | 2-3/4" | 3/4"-10 | 4.00" | 1-1/8" | 15/32" | 5 | $54.68 |
| Bolt-4931 | 2-3/4" | 3/4"-10 | 5.00" | 1-1/8" | 15/32" | 1 | $16.78 |
