Metric Class 10.9 Black Oxide Steel Flange Head Bolts
RH Threads
| Metric Class 10.9 Black Oxide Steel Flange Head Bolts Fully Threaded | |||||||
| Part # | Thread Size | Overall Length | Head Width | Head Height | Flange Diameter | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|
| Bolt-5333 | M5 x 0.8 | 10mm | 8mm | 5.4mm | 11.8mm | 100 | $19.15 |
| Bolt-5334 | M5 x 0.8 | 12mm | 8mm | 5.4mm | 11.8mm | 100 | $18.08 |
| Bolt-5335 | M5 x 0.8 | 16mm | 8mm | 5.4mm | 11.8mm | 100 | $16.88 |
| Bolt-5336 | M5 x 0.8 | 20mm | 8mm | 5.4mm | 11.8mm | 100 | $29.04 |
| Bolt-5337 | M6 x 1 | 10mm | 10mm | 6.6mm | 14.2mm | 100 | $29.04 |
| Bolt-5338 | M6 x 1 | 12mm | 10mm | 6.6mm | 14.2mm | 100 | $29.06 |
| Bolt-5339 | M6 x 1 | 16mm | 10mm | 6.6mm | 14.2mm | 100 | $36.28 |

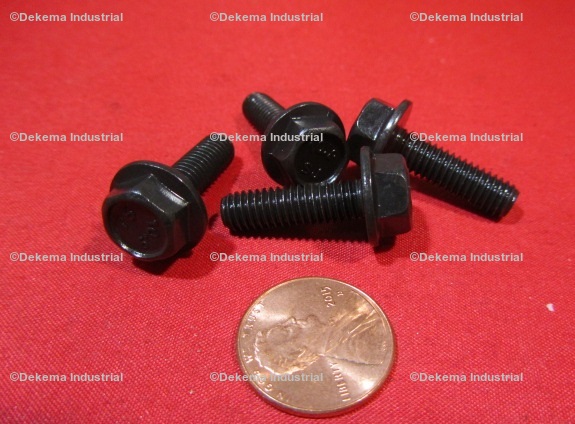

| Bolt-5340 | M6 x 1 | 20mm | 10mm | 6.6mm | 14.2mm | 100 | $36.31 |
| Bolt-5343 | M8 x 1.25 | 12mm | 13mm | 8.1mm | 18mm | 50 | $29.02 |
| Bolt-5344 | M8 x 1.25 | 16mm | 13mm | 8.1mm | 18mm | 50 | $32.67 |
| Bolt-5345 | M8 x 1.25 | 20mm | 13mm | 8.1mm | 18mm | 50 | $42.39 |
| Bolt-5346 | M8 x 1.25 | 25mm | 13mm | 8.1mm | 18mm | 50 | $44.96 |
| Bolt-5347 | M8 x 1.25 | 30mm | 13mm | 8.1mm | 18mm | 50 | $47.83 |
| Bolt-5353 | M10 x 1.5 | 16mm | 15mm | 10.4mm | 22.3mm | 50 | $54.43 |
| Bolt-5354 | M10 x 1.5 | 20mm | 15mm | 10.4mm | 22.3mm | 25 | $35.07 |
| Bolt-5355 | M10 x 1.5 | 25mm | 15mm | 10.4mm | 22.3mm | 25 | $36.39 |
| Bolt-5356 | M10 x 1.5 | 30mm | 15mm | 10.4mm | 22.3mm | 25 | $38.01 |
| Bolt-5357 | M10 x 1.5 | 35mm | 15mm | 10.4mm | 22.3mm | 25 | $38.09 |
| Bolt-5366 | M12 x 1.75 | 20mm | 18mm | 11.8mm | 26.6mm | 20 | $31.92 |
| Bolt-5367 | M12 x 1.75 | 25mm | 18mm | 11.8mm | 26.6mm | 20 | $48.93 |
| Bolt-5368 | M12 x 1.75 | 30mm | 18mm | 11.8mm | 26.6mm | 20 | $49.51 |
| Bolt-5369 | M12 x 1.75 | 35mm | 18mm | 11.8mm | 26.6mm | 20 | $51.61 |
| Bolt-5370 | M12 x 1.75 | 40mm | 18mm | 11.8mm | 26.6mm | 20 | $51.82 |
| Bolt-5378 | M14 x 2 | 35mm | 18mm | 12.8mm | 30.5mm | 10 | $34.86 |
| Bolt-5387 | M16 x 2 | 30mm | 24mm | 15.4mm | 35mm | 10 | $45.36 |
| Bolt-5388 | M16 x 2 | 35mm | 24mm | 15.4mm | 35mm | 10 | $43.21 |
| Bolt-5389 | M16 x 2 | 40mm | 24mm | 15.4mm | 35mm | 5 | $29.08 |
| Bolt-5390 | M16 x 2 | 50mm | 24mm | 15.4mm | 35mm | 5 | $24.92 |
| Metric Class 10.9 Black Oxide Steel Flange Head Bolts Partially Threaded | ||||||||
| Part # | Thread Length | Thread Size | Overall Length | Head Width | Head Height | Flange Diameter | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|

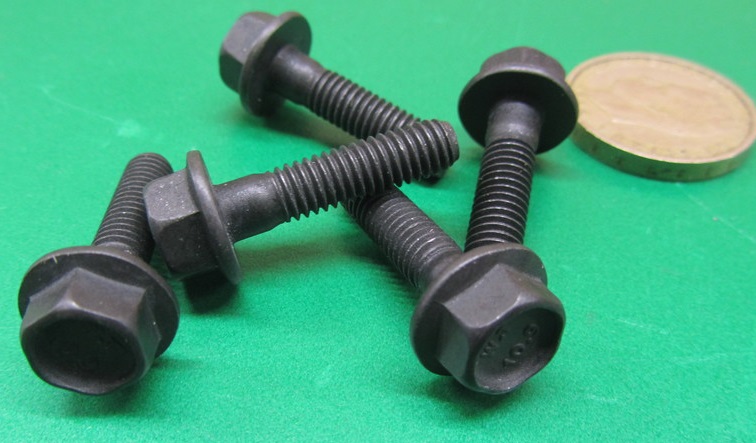

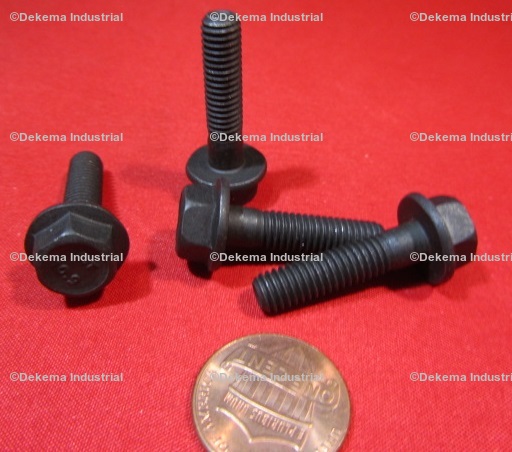

| Bolt-5341 | 18 to 23 | M6 x 1 | 25mm | 10mm | 6.6mm | 14.2mm | 100 | $29.06 |

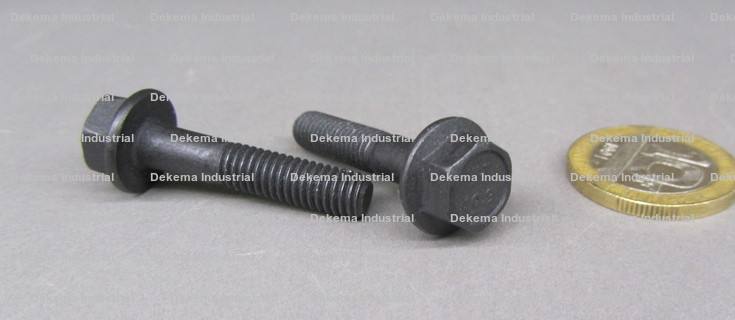

| Bolt-5342 | 18 to 23 | M6 x 1 | 30mm | 10mm | 6.6mm | 14.2mm | 100 | $43.55 |
| Bolt-5348 | 22 to 29 | M8 x 1.25 | 35mm | 13mm | 8.1mm | 18mm | 50 | $47.92 |

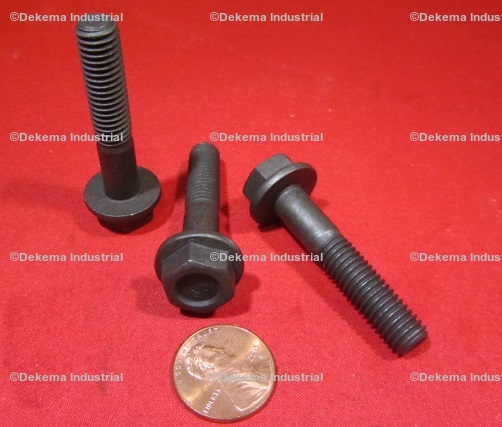

| Bolt-5349 | 22 to 29 | M8 x 1.25 | 40mm | 13mm | 8.1mm | 18mm | 50 | $37.61 |
| Bolt-5350 | 22 to 29 | M8 x 1.25 | 45mm | 13mm | 8.1mm | 18mm | 25 | $31.47 |
| Bolt-5351 | 22 to 29 | M8 x 1.25 | 50mm | 13mm | 8.1mm | 18mm | 25 | $32.84 |

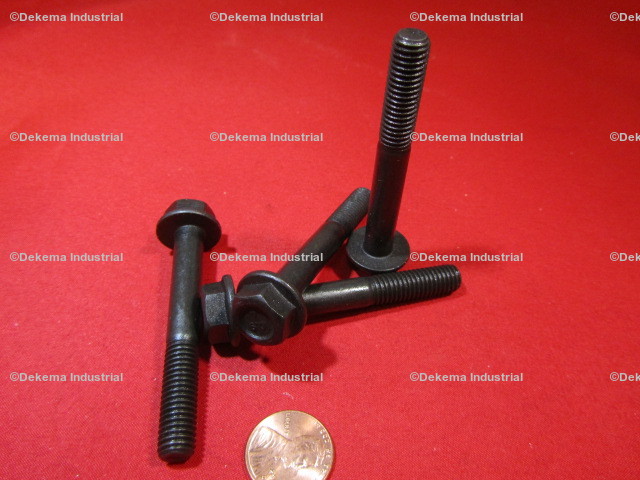

| Bolt-5352 | 22 to 29 | M8 x 1.25 | 60mm | 13mm | 8.1mm | 18mm | 25 | $35.91 |
| Bolt-5358 | 26 to 34 | M10 x 1.5 | 40mm | 15mm | 10.4mm | 22.3mm | 25 | $50.96 |
| Bolt-5359 | 26 to 34 | M10 x 1.5 | 45mm | 15mm | 10.4mm | 22.3mm | 20 | $40.23 |
| Bolt-5360 | 26 to 34 | M10 x 1.5 | 50mm | 15mm | 10.4mm | 22.3mm | 20 | $42.75 |
| Bolt-5361 | 26 to 34 | M10 x 1.5 | 60mm | 15mm | 10.4mm | 22.3mm | 10 | $23.87 |
| Bolt-5362 | 26 to 34 | M10 x 1.5 | 70mm | 15mm | 10.4mm | 22.3mm | 10 | $25.11 |
| Bolt-5363 | 26 to 34 | M10 x 1.5 | 80mm | 15mm | 10.4mm | 22.3mm | 10 | $27.11 |
| Bolt-5364 | 26 to 34 | M10 x 1.5 | 90mm | 15mm | 10.4mm | 22.3mm | 10 | $30.34 |
| Bolt-5365 | 26 to 34 | M10 x 1.5 | 100mm | 15mm | 10.4mm | 22.3mm | 10 | $31.37 |
| Bolt-5371 | 30 to 39 | M12 x 1.75 | 45mm | 18mm | 11.8mm | 26.6mm | 20 | $56.57 |
| Bolt-5372 | 30 to 39 | M12 x 1.75 | 50mm | 18mm | 11.8mm | 26.6mm | 10 | $36.96 |
| Bolt-5373 | 30 to 39 | M12 x 1.75 | 60mm | 18mm | 11.8mm | 26.6mm | 10 | $31.90 |

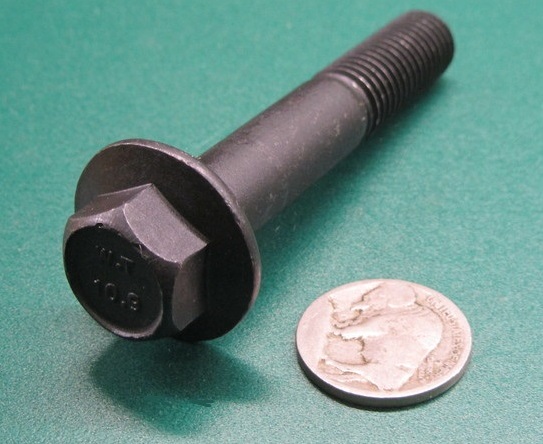

| Bolt-5374 | 30 to 39 | M12 x 1.75 | 70mm | 18mm | 11.8mm | 26.6mm | 10 | $32.99 |

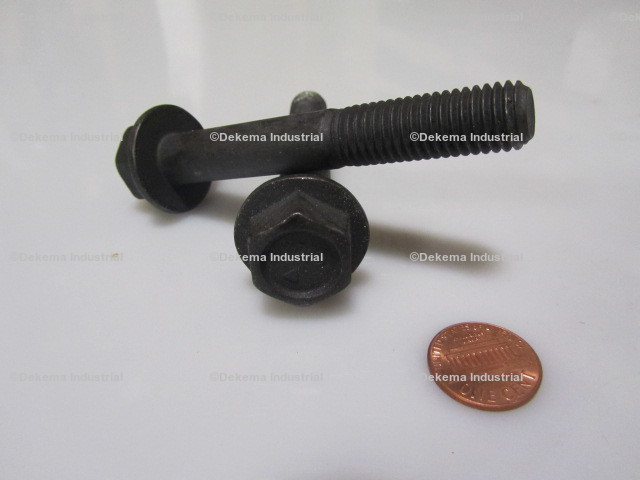

| Bolt-5375 | 30 to 39 | M12 x 1.75 | 80mm | 18mm | 11.8mm | 26.6mm | 10 | $52.70 |
| Bolt-5376 | 30 to 39 | M12 x 1.75 | 90mm | 18mm | 11.8mm | 26.6mm | 5 | $21.12 |
| Bolt-5377 | 30 to 39 | M12 x 1.75 | 100mm | 18mm | 11.8mm | 26.6mm | 10 | $45.27 |
| Bolt-5379 | 34 to full | M14 x 2 | 40mm | 18mm | 12.8mm | 30.5mm | 10 | $37.38 |
| Bolt-5380 | 34 to full | M14 x 2 | 45mm | 18mm | 12.8mm | 30.5mm | 5 | $19.88 |
| Bolt-5381 | 34 to full | M14 x 2 | 50mm | 18mm | 12.8mm | 30.5mm | 5 | $23.14 |
| Bolt-5382 | 34 to full | M14 x 2 | 60mm | 18mm | 12.8mm | 30.5mm | 5 | $24.69 |
| Bolt-5383 | 34 to full | M14 x 2 | 70mm | 18mm | 12.8mm | 30.5mm | 5 | $26.88 |

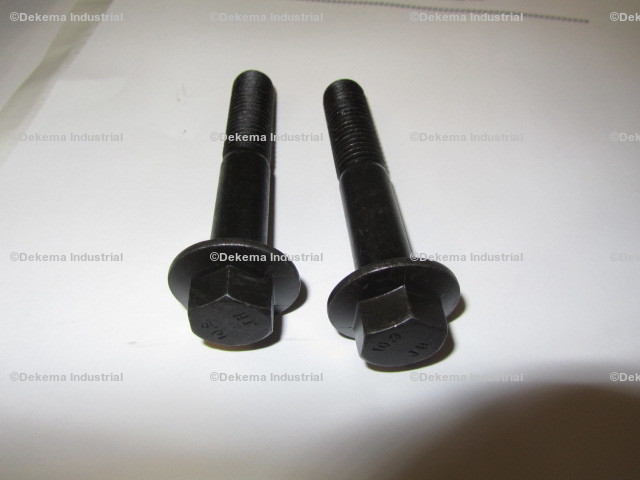

| Bolt-5384 | 34 to full | M14 x 2 | 80mm | 18mm | 12.8mm | 30.5mm | 5 | $28.75 |
| Bolt-5385 | 34 to full | M14 x 2 | 90mm | 18mm | 12.8mm | 30.5mm | 5 | $33.16 |
| Bolt-5386 | 34 to full | M14 x 2 | 100mm | 18mm | 12.8mm | 30.5mm | 5 | $36.94 |
| Bolt-5391 | 38 to 48 | M16 x 2 | 60mm | 24mm | 15.4mm | 35mm | 5 | $34.75 |
| Bolt-5392 | 38 to 48 | M16 x 2 | 70mm | 24mm | 15.4mm | 35mm | 5 | $30.28 |
| Bolt-5393 | 38 to 48 | M16 x 2 | 80mm | 24mm | 15.4mm | 35mm | 5 | $35.38 |
| Bolt-5394 | 38 to 48 | M16 x 2 | 90mm | 24mm | 15.4mm | 35mm | 5 | $38.17 |
| Bolt-5395 | 38 to 48 | M16 x 2 | 100mm | 24mm | 15.4mm | 35mm | 5 | $33.68 |
