JIS High Strength Zinc Plated Class 10.9 Steel Flange Head Bolts

RH Threads, SAE J429

JIS High Strength Zinc Plated Class 10.9 Steel Flange Head Bolts  Fully Threaded
Part #	Thread Size	Overall Length	Head Width	Head Height	Flange Diameter	Pkg. Qty.	Pkg. Price
Bolt-5421	M6 x 1	12mm	10mm	6mm	14mm	100	$35.07
Bolt-5422	M6 x 1	16mm	10mm	6mm	14mm	100	$35.15
Bolt-5423	M6 x 1	20mm	10mm	6mm	14mm	100	$35.11
Bolt-5424	M6 x 1	25mm	10mm	6mm	14mm	100	$42.12
Bolt-5428	M8 x 1.25	12mm	12mm	8mm	17.5mm	50	$28.05
Bolt-5429	M8 x 1.25	16mm	12mm	8mm	17.5mm	50	$31.54

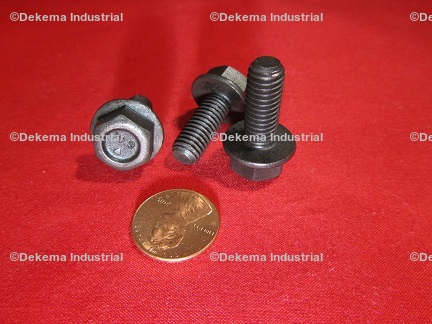

Bolt-5430	M8 x 1.25	20mm	12mm	8mm	17.5mm	50	$38.64
Bolt-5431	M8 x 1.25	25mm	12mm	8mm	17.5mm	50	$42.08
Bolt-5432	M8 x 1.25	30mm	12mm	8mm	17.5mm	50	$42.12
Bolt-5438	M10 x 1.25	16mm	14mm	10mm	21mm	25	$26.35
Bolt-5439	M10 x 1.25	20mm	14mm	10mm	21mm	25	$65.12
Bolt-5440	M10 x 1.25	25mm	14mm	10mm	21mm	25	$24.90
Bolt-5441	M10 x 1.25	30mm	14mm	10mm	21mm	20	$18.90
Bolt-5442	M10 x 1.25	35mm	14mm	10mm	21mm	20	$25.91

JIS High Strength Zinc Plated Class 10.9 Steel Flange Head Bolts Partially Threaded
Part #	Thread Length	Thread Size	Overall Length	Head Width	Head Height	Flange Diameter	Pkg. Qty.	Pkg. Price
Bolt-5425	18 to Full	M6 x 1	30mm	10mm	6mm	14mm	50	$24.59
Bolt-5426	18 to 23	M6 x 1	35mm	10mm	6mm	14mm	100	$56.19
Bolt-5427	18 to 23	M6 x 1	40mm	10mm	6mm	14mm	50	$28.09
Bolt-5433	22 to Full	M8 x 1.25	35mm	12mm	8mm	17.5mm	25	$22.82
Bolt-5434	22 to 29	M8 x 1.25	40mm	12mm	8mm	17.5mm	25	$24.59
Bolt-5435	22 to 29	M8 x 1.25	45mm	12mm	8mm	17.5mm	25	$28.07
Bolt-5436	22 to 29	M8 x 1.25	50mm	12mm	8mm	17.5mm	25	$29.84
Bolt-5437	22 to 29	M8 x 1.25	60mm	12mm	8mm	17.5mm	25	$31.58
Bolt-5443	26 to Full	M10 x 1.25	40mm	14mm	10mm	21mm	20	$33.47
Bolt-5444	26 to 34	M10 x 1.25	45mm	14mm	10mm	21mm	20	$36.45
Bolt-5445	26 to 34	M10 x 1.25	50mm	14mm	10mm	21mm	20	$37.92
Bolt-5446	26 to 34	M10 x 1.25	60mm	14mm	10mm	21mm	25	$84.21
Bolt-5447	26 to 34	M10 x 1.25	70mm	14mm	10mm	21mm	10	$23.71
