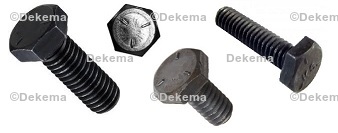

Grade 5 Steel Left Hand Bolts
Grade 5, Uncoated, LH Threads, ASME B18.2.1, SAE J429
| Grade 5 Steel Left Hand Bolts Fully Threaded | ||||||
| Part # | Thread Size | Overall Length | Head Width | Head Height | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|
| Bolt-5688 | 3/8"-16 | 1.50" | 9/16" | 1/4" | 3 | $26.67 |
| Bolt-5689 | 3/8"-16 | 1.75" | 9/16" | 1/4" | 3 | $34.23 |
| Bolt-5690 | 3/8"-16 | 2.00" | 9/16" | 1/4" | 2 | $29.23 |
| Bolt-5691 | 3/8"-16 | 2.50" | 9/16" | 1/4" | 2 | $29.61 |
| Bolt-5692 | 3/8"-16 | 3.00" | 9/16" | 1/4" | 2 | $32.34 |
| Bolt-5693 | 1/2"-13 | 1.50" | 3/4" | 11/32" | 2 | $25.03 |
| Bolt-5694 | 1/2"-13 | 1.75" | 3/4" | 11/32" | 2 | $33.05 |
| Bolt-5695 | 1/2"-13 | 2.00" | 3/4" | 11/32" | 2 | $31.54 |
| Bolt-5696 | 1/2"-13 | 2.50" | 3/4" | 11/32" | 2 | $32.67 |
| Bolt-5697 | 1/2"-13 | 3.00" | 3/4" | 11/32" | 2 | $35.82 |
| Bolt-5698 | 1/2"-13 | 4.00" | 3/4" | 11/32" | 2 | $40.57 |
| Bolt-5699 | 5/8"-11 | 1.50" | 15/16" | 27/64" | 2 | $32.00 |
| Bolt-5700 | 5/8"-11 | 2.00" | 15/16" | 27/64" | 1 | $21.69 |

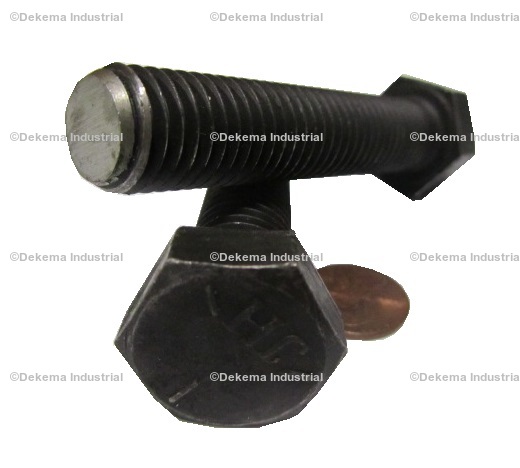

| Bolt-5701 | 5/8"-11 | 3.00" | 15/16" | 27/64" | 1 | $23.01 |
| Bolt-5703 | 3/4"-10 | 1.50" | 1-1/8" | 1/2" | 1 | $25.07 |
| Grade 5 Steel Left Hand Bolts Partially Threaded | ||||||
| Part # | Thread Length | Thread Size | Overall Length | Head Width | Head Height | Price |
|---|---|---|---|---|---|---|
| Bolt-5702 | 1-1/2" to 2" | 5/8"-11 | 4.00" | 15/16" | 27/64" | $28.41 |
| Bolt-5704 | 1-3/4" to 2-1/4" | 3/4"-10 | 4.00" | 1-1/8" | 1/2" | $32.02 |
