Grade 8 Black Oxide Steel Flange Head Bolts
Grade 8
Partial Threads Below
| Grade 8 Black Oxide Steel Flange Head Bolts Fully Threaded | |||||||
| Part # | Thread Size | Overall Length | Head Width | Head Height | Flange Diameter | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|
| Bolt-5218 | 1/4"-20 | .375" | 3/8" | 9/32" | .5625" | 25 | $23.81 |
| Bolt-5219 | 1/4"-20 | .500" | 3/8" | 9/32" | .5625" | 100 | $23.73 |
| Bolt-5220 | 1/4"-20 | .625" | 3/8" | 9/32" | .5625" | 100 | $40.40 |
| Bolt-5221 | 1/4"-20 | .750" | 3/8" | 9/32" | .5625" | 100 | $31.37 |
| Bolt-5222 | 1/4"-20 | 1.00" | 3/8" | 9/32" | .5625" | 50 | $22.82 |
| Bolt-5223 | 1/4"-20 | 1.25" | 3/8" | 9/32" | .5625" | 50 | $24.48 |
| Bolt-5229 | 5/16"-18 | .500" | 1/2" | 21/64" | .6875" | 50 | $33.18 |
| Bolt-5230 | 5/16"-18 | .625" | 1/2" | 21/64" | .6875" | 20 | $31.41 |
| Bolt-5231 | 5/16"-18 | .750" | 1/2" | 21/64" | .6875" | 50 | $20.51 |
| Bolt-5232 | 5/16"-18 | .875" | 1/2" | 21/64" | .6875" | 10 | $20.03 |

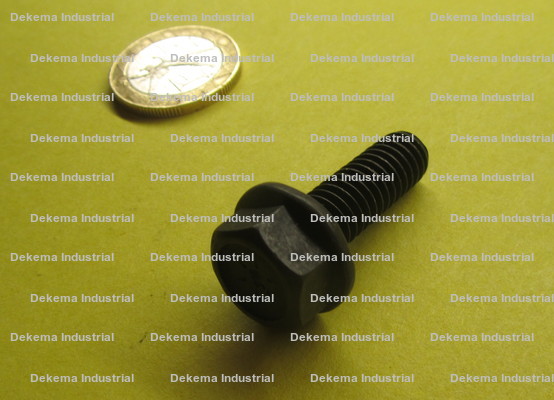

| Bolt-5233 | 5/16"-18 | 1.00" | 1/2" | 21/64" | .6875" | 50 | $18.92 |

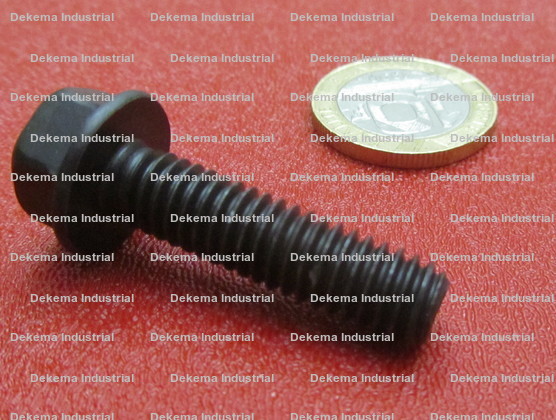

| Bolt-5234 | 5/16"-18 | 1.25" | 1/2" | 21/64" | .6875" | 25 | $42.90 |

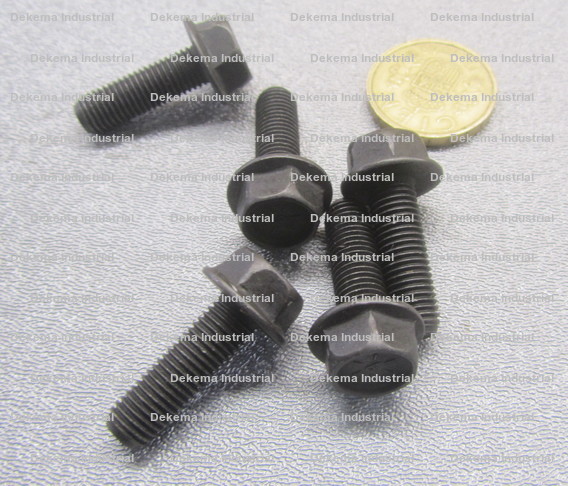

| Bolt-5243 | 5/16"-24 | 1.00" | 1/2" | 21/64" | .6875" | 10 | $21.20 |
| Bolt-5244 | 5/16"-24 | 1.25" | 1/2" | 21/64" | .6875" | 10 | $21.92 |
| Bolt-5247 | 3/8"-16 | .500" | 9/16" | 25/64" | .8125" | 10 | $21.52 |

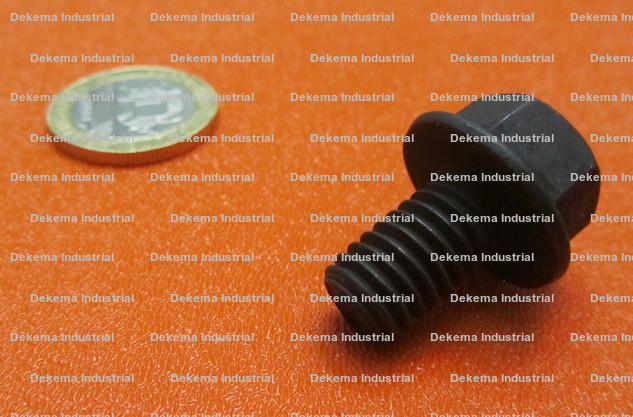

| Bolt-5248 | 3/8"-16 | .625" | 9/16" | 25/64" | .8125" | 25 | $26.18 |

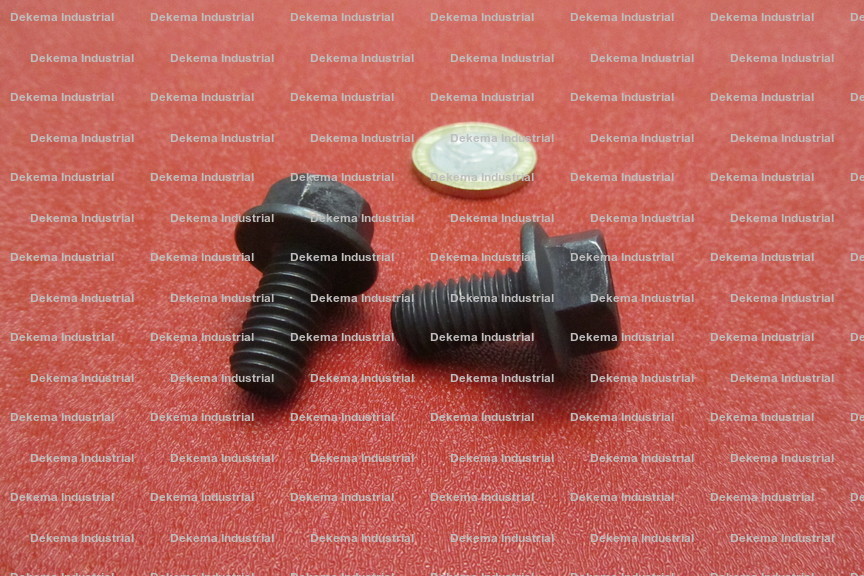

| Bolt-5249 | 3/8"-16 | .750" | 9/16" | 25/64" | .8125" | 25 | $19.84 |
| Bolt-5250 | 3/8"-16 | 1.00" | 9/16" | 25/64" | .8125" | 25 | $15.22 |

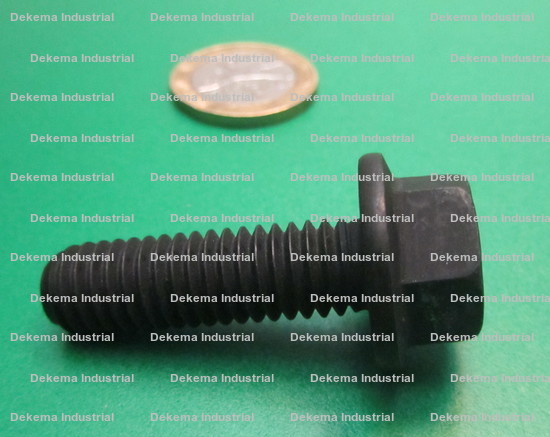

| Bolt-5251 | 3/8"-16 | 1.25" | 9/16" | 25/64" | .8125" | 25 | $16.80 |

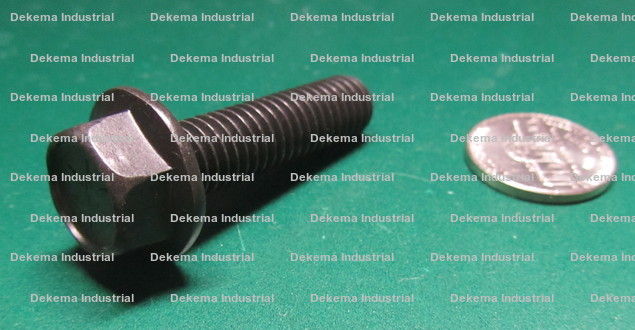

| Bolt-5252 | 3/8"-16 | 1.50" | 9/16" | 25/64" | .8125" | 25 | $29.04 |

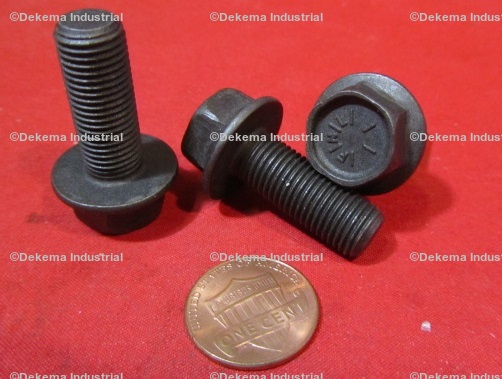

| Bolt-5262 | 3/8"-24 | 1.00" | 9/16" | 25/64" | .8125" | 10 | $23.01 |

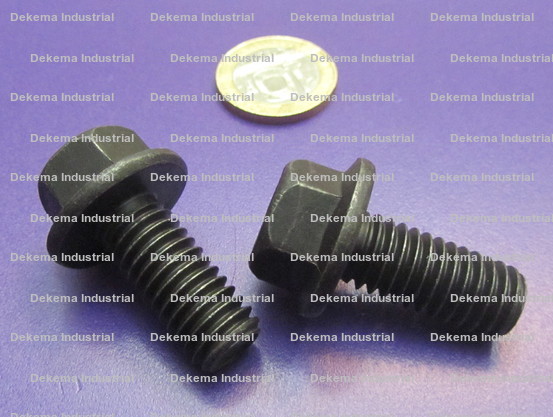

| Bolt-5264 | 7/16"-14 | 1.00" | 5/8" | 15/32" | .9375" | 20 | $25.15 |

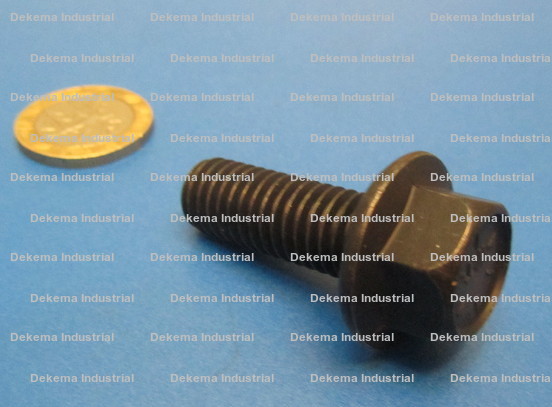

| Bolt-5265 | 7/16"-14 | 1.25" | 5/8" | 15/32" | .9375" | 10 | $39.18 |
| Bolt-5266 | 7/16"-14 | 1.50" | 5/8" | 15/32" | .9375" | 10 | $23.81 |
| Bolt-5269 | 7/16"-20 | 1.00" | 5/8" | 15/32" | .9375" | 5 | $31.58 |
| Bolt-5270 | 1/2"-13 | .750" | 3/4" | 33/64" | 1-5/64" | 10 | $28.05 |
| Bolt-5271 | 1/2"-13 | 1.00" | 3/4" | 33/64" | 1-5/64" | 20 | $37.33 |
| Bolt-5272 | 1/2"-13 | 1.25" | 3/4" | 33/64" | 1-5/64" | 20 | $40.32 |
| Bolt-5273 | 1/2"-13 | 1.50" | 3/4" | 33/64" | 1-5/64" | 20 | $43.59 |
| Bolt-5274 | 1/2"-13 | 1.75" | 3/4" | 33/64" | 1-5/64" | 10 | $23.81 |
| Bolt-5287 | 1/2"-20 | 1.00" | 3/4" | 33/64" | 1-5/64" | 5 | $20.72 |
| Bolt-5288 | 1/2"-20 | 1.25" | 3/4" | 33/64" | 1-5/64" | 20 | $39.35 |
| Bolt-5289 | 1/2"-20 | 1.50" | 3/4" | 33/64" | 1-5/64" | 10 | $21.96 |
| Bolt-5290 | 1/2"-20 | 1.75" | 3/4" | 33/64" | 1-5/64" | 10 | $25.49 |
| Bolt-5298 | 5/8"-11 | 1.25" | 15/16" | 5/8" | 1-21/64" | 10 | $19.13 |
| Bolt-5299 | 5/8"-11 | 1.50" | 15/16" | 5/8" | 1-21/64" | 10 | $23.87 |
| Bolt-5300 | 5/8"-11 | 1.75" | 15/16" | 5/8" | 1-21/64" | 10 | $22.36 |
| Bolt-5301 | 5/8"-11 | 2.00" | 15/16" | 5/8" | 1-21/64" | 10 | $23.81 |
| Bolt-5302 | 5/8"-11 | 2.25" | 15/16" | 5/8" | 1-21/64" | 5 | $23.31 |
| Bolt-5303 | 5/8"-11 | 2.50" | 15/16" | 5/8" | 1-21/64" | 5 | $30.80 |
| Bolt-5312 | 5/8"-18 | 1.50" | 15/16" | 5/8" | 1-21/64" | 10 | $40.90 |
| Bolt-5313 | 5/8"-18 | 2.00" | 15/16" | 5/8" | 1-21/64" | 5 | $21.77 |
| Bolt-5314 | 5/8"-18 | 2.50" | 15/16" | 5/8" | 1-21/64" | 5 | $28.58 |
| Bolt-5317 | 3/4"-10 | 1.50" | 1-1/8" | 47/64" | 1-19/32" | 5 | $36.83 |
| Bolt-5318 | 3/4"-10 | 1.75" | 1-1/8" | 47/64" | 1-19/32" | 5 | $47.96 |
| Bolt-5326 | 3/4"-16 | 1.75" | 1-1/8" | 47/64" | 1-19/32" | 5 | $58.36 |
| Bolt-5329 | 3/4"-16 | 2.50" | 1-1/8" | 47/64" | 1-19/32" | 1 | $18.04 |
| Bolt-5327 | 3/4"-16 | 2.00" | 1-1/8" | 47/64" | 1-19/32" | 5 | $52.06 |
| Grade 8 Black Oxide Steel Flange Head Bolts Partially Threaded | ||||||||
| Part # | Thread Length | Thread Size | Length | Head Width | Head Height | Flange Diameter | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|
| Bolt-5224 | 3/4" to 1-3/16" | 1/4"-20 | 1.50" | 3/8" | 9/32" | .5625" | 50 | $19.84 |

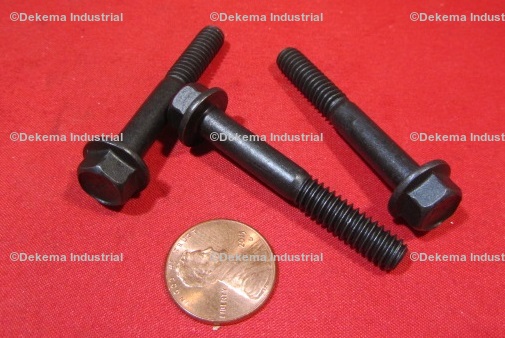

| Bolt-5225 | 3/4" to 1-3/16" | 1/4"-20 | 1.75" | 3/8" | 9/32" | .5625" | 50 | $21.86 |
| Bolt-5226 | 3/4" to 1-3/16" | 1/4"-20 | 2.00" | 3/8" | 9/32" | .5625" | 50 | $30.64 |
| Bolt-5227 | 3/4" to 1-3/16" | 1/4"-20 | 2.50" | 3/8" | 9/32" | .5625" | 25 | $26.46 |
| Bolt-5228 | 3/4" to 1-3/16" | 1/4"-20 | 3.00" | 3/8" | 9/32" | .5625" | 25 | $29.69 |
| Bolt-5235 | 7/8" to 1-5/16" | 5/16"-18 | 1.50" | 1/2" | 21/64" | .6875" | 25 | $25.62 |
| Bolt-5236 | 7/8" to 1-5/16" | 5/16"-18 | 1.75" | 1/2" | 21/64" | .6875" | 25 | $26.67 |
| Bolt-5237 | 7/8" to 1-5/16" | 5/16"-18 | 2.00" | 1/2" | 21/64" | .6875" | 25 | $29.02 |
| Bolt-5238 | 7/8" to 1-5/16" | 5/16"-18 | 2.25" | 1/2" | 21/64" | .6875" | 25 | $31.77 |
| Bolt-5239 | 7/8" to 1-5/16" | 5/16"-18 | 2.50" | 1/2" | 21/64" | .6875" | 25 | $36.54 |
| Bolt-5240 | 7/8" to 1-5/16" | 5/16"-18 | 3.00" | 1/2" | 21/64" | .6875" | 25 | $43.03 |
| Bolt-5241 | 7/8" to 1-5/16" | 5/16"-18 | 3.50" | 1/2" | 21/64" | .6875" | 5 | $21.44 |
| Bolt-5242 | 7/8" to 1-5/16" | 5/16"-18 | 4.00" | 1/2" | 21/64" | .6875" | 10 | $37.67 |
| Bolt-5245 | 7/8" to 1-5/16" | 5/16"-24 | 1.50" | 1/2" | 21/64" | .6875" | 10 | $24.31 |
| Bolt-5246 | 7/8" to 1-5/16" | 5/16"-24 | 2.00" | 1/2" | 21/64" | .6875" | 10 | $31.83 |
| Bolt-5253 | 1" to 1-7/16" | 3/8"-16 | 1.75" | 9/16" | 25/64" | .8125" | 25 | $21.29 |
| Bolt-5254 | 1" to 1-7/16" | 3/8"-16 | 2.00" | 9/16" | 25/64" | .8125" | 25 | $35.47 |
| Bolt-5255 | 1" to 1-7/16" | 3/8"-16 | 2.25" | 9/16" | 25/64" | .8125" | 25 | $37.80 |
| Bolt-5256 | 1" to 1-7/16" | 3/8"-16 | 2.50" | 9/16" | 25/64" | .8125" | 25 | $39.10 |
| Bolt-5257 | 1" to 1-7/16" | 3/8"-16 | 2.75" | 9/16" | 25/64" | .8125" | 20 | $38.17 |
| Bolt-5258 | 1" to 1-7/16" | 3/8"-16 | 3.00" | 9/16" | 25/64" | .8125" | 20 | $39.81 |
| Bolt-5259 | 1" to 1-7/16" | 3/8"-16 | 3.50" | 9/16" | 25/64" | .8125" | 5 | $20.51 |
| Bolt-5260 | 1" to 1-7/16" | 3/8"-16 | 4.00" | 9/16" | 25/64" | .8125" | 10 | $31.35 |
| Bolt-5261 | 1" to 1-7/16" | 3/8"-16 | 4.50" | 9/16" | 25/64" | .8125" | 5 | $38.93 |
| Bolt-5263 | 1" to 1-7/16" | 3/8"-24 | 2.50" | 9/16" | 25/64" | .8125" | 5 | $19.06 |
| Bolt-5267 | 1-1/8" to 1-5/8" | 7/16"-14 | 2.00" | 5/8" | 15/32" | .9375" | 10 | $27.74 |
| Bolt-5268 | 1-1/8" to 1-5/8" | 7/16"-14 | 3.00" | 5/8" | 15/32" | .9375" | 10 | $40.57 |
| Bolt-5275 | 1-1/4" to 1-3/4" | 1/2"-13 | 2.00" | 3/4" | 33/64" | 1-5/64" | 10 | $32.48 |
| Bolt-5276 | 1-1/4" to 1-3/4" | 1/2"-13 | 2.25" | 3/4" | 33/64" | 1-5/64" | 10 | $27.49 |
| Bolt-5277 | 1-1/4" to 1-3/4" | 1/2"-13 | 2.50" | 3/4" | 33/64" | 1-5/64" | 10 | $29.02 |

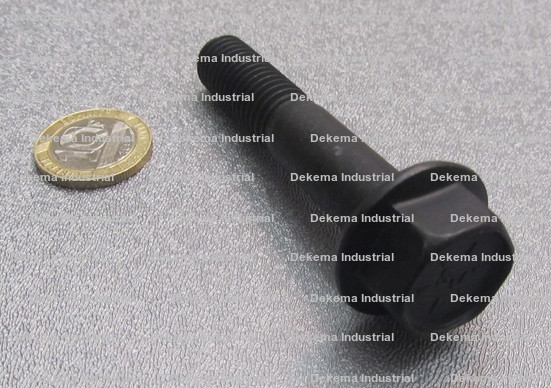

| Bolt-5278 | 1-1/4" to 1-3/4" | 1/2"-13 | 2.75" | 3/4" | 33/64" | 1-5/64" | 10 | $32.04 |
| Bolt-5279 | 1-1/4" to 1-3/4" | 1/2"-13 | 3.00" | 3/4" | 33/64" | 1-5/64" | 10 | $32.50 |
| Bolt-5280 | 1-1/4" to 1-3/4" | 1/2"-13 | 3.25" | 3/4" | 33/64" | 1-5/64" | 10 | $35.02 |
| Bolt-5281 | 1-1/4" to 1-3/4" | 1/2"-13 | 3.50" | 3/4" | 33/64" | 1-5/64" | 10 | $36.64 |
| Bolt-5282 | 1-1/4" to 1-3/4" | 1/2"-13 | 3.75" | 3/4" | 33/64" | 1-5/64" | 5 | $28.35 |
| Bolt-5283 | 1-1/4" to 1-3/4" | 1/2"-13 | 4.00" | 3/4" | 33/64" | 1-5/64" | 10 | $40.36 |
| Bolt-5284 | 1-1/4" to 1-3/4" | 1/2"-13 | 4.50" | 3/4" | 33/64" | 1-5/64" | 5 | $26.94 |
| Bolt-5285 | 1-1/4" to 1-3/4" | 1/2"-13 | 5.00" | 3/4" | 33/64" | 1-5/64" | 5 | $27.88 |
| Bolt-5286 | 1-1/4" to 1-3/4" | 1/2"-13 | 6.00" | 3/4" | 33/64" | 1-5/64" | 1 | $25.41 |
| Bolt-5291 | 1-1/4" to 1-3/4" | 1/2"-20 | 2.00" | 3/4" | 33/64" | 1-5/64" | 10 | $24.73 |
| Bolt-5292 | 1-1/4" to 1-3/4" | 1/2"-20 | 2.25" | 3/4" | 33/64" | 1-5/64" | 10 | $28.35 |
| Bolt-5293 | 1-1/4" to 1-3/4" | 1/2"-20 | 2.50" | 3/4" | 33/64" | 1-5/64" | 10 | $29.63 |
| Bolt-5294 | 1-1/4" to 1-3/4" | 1/2"-20 | 2.75" | 3/4" | 33/64" | 1-5/64" | 10 | $34.58 |
| Bolt-5295 | 1-1/4" to 1-3/4" | 1/2"-20 | 3.00" | 3/4" | 33/64" | 1-5/64" | 5 | $27.40 |
| Bolt-5296 | 1-1/4" to 1-3/4" | 1/2"-20 | 4.00" | 3/4" | 33/64" | 1-5/64" | 5 | $34.69 |
| Bolt-5297 | 1-1/4" to 1-3/4" | 1/2"-20 | 5.00" | 3/4" | 33/64" | 1-5/64" | 5 | $31.92 |
| Bolt-5304 | 1-1/2" to 2-5/16" | 5/8"-11 | 2.75" | 15/16" | 5/8" | 1-21/64" | 5 | $25.74 |
| Bolt-5305 | 1-1/2" to 2-5/16" | 5/8"-11 | 3.00" | 15/16" | 5/8" | 1-21/64" | 5 | $29.77 |
| Bolt-5306 | 1-1/2" to 2-5/16" | 5/8"-11 | 3.25" | 15/16" | 5/8" | 1-21/64" | 5 | $32.86 |
| Bolt-5307 | 1-1/2" to 2-5/16" | 5/8"-11 | 3.50" | 15/16" | 5/8" | 1-21/64" | 5 | $33.28 |
| Bolt-5308 | 1-1/2" to 2-5/16" | 5/8"-11 | 4.00" | 15/16" | 5/8" | 1-21/64" | 5 | $23.50 |
| Bolt-5309 | 1-1/2" to 2-5/16" | 5/8"-11 | 4.50" | 15/16" | 5/8" | 1-21/64" | 5 | $55.10 |
| Bolt-5310 | 1-1/2" to 2-5/16" | 5/8"-11 | 5.00" | 15/16" | 5/8" | 1-21/64" | 5 | $27.15 |
| Bolt-5311 | 1-1/2" to 2-5/16" | 5/8"-11 | 6.00" | 15/16" | 5/8" | 1-21/64" | 5 | $68.86 |
| Bolt-5315 | 1-1/2" to 2-5/16" | 5/8"-18 | 3.00" | 15/16" | 5/8" | 1-21/64" | 5 | $33.18 |
| Bolt-5316 | 1-1/2" to 2-5/16" | 5/8"-18 | 4.00" | 15/16" | 5/8" | 1-21/64" | 5 | $50.48 |
| Bolt-5319 | 1-3/4" to Full | 3/4"-10 | 2.00" | 1-1/8" | 47/64" | 1-19/32" | 5 | $46.39 |
| Bolt-5320 | 1-3/4" to Full | 3/4"-10 | 2.50" | 1-1/8" | 47/64" | 1-19/32" | 5 | $33.55 |
| Bolt-5321 | 1-3/4" to 2-9/16" | 3/4"-10 | 3.00" | 1-1/8" | 47/64" | 1-19/32" | 5 | $25.07 |
| Bolt-5322 | 1-3/4" to 2-9/16" | 3/4"-10 | 3.50" | 1-1/8" | 47/64" | 1-19/32" | 5 | $67.91 |
| Bolt-5323 | 1-3/4" to 2-9/16" | 3/4"-10 | 4.00" | 1-1/8" | 47/64" | 1-19/32" | 5 | $70.12 |
| Bolt-5324 | 1-3/4" to 2-9/16" | 3/4"-10 | 5.00" | 1-1/8" | 47/64" | 1-19/32" | 5 | $84.40 |
| Bolt-5325 | 1-3/4" to 2-9/16" | 3/4"-10 | 6.00" | 1-1/8" | 47/64" | 1-19/32" | 1 | $29.37 |
| Bolt-5331 | 1-3/4" to 2-9/16" | 3/4"-16 | 3.50" | 1-1/8" | 47/64" | 1-19/32" | 1 | $21.33 |
| Bolt-5332 | 1-3/4" to 2-9/16" | 3/4"-16 | 4.00" | 1-1/8" | 47/64" | 1-19/32" | 1 | $23.45 |
| Bolt-5328 | 1-3/4" to Full | 3/4"-16 | 2.25" | 1-1/8" | 47/64" | 1-19/32" | 5 | $54.68 |
| Bolt-5330 | 1-3/4" to 2-9/16" | 3/4"-16 | 3.00" | 1-1/8" | 47/64" | 1-19/32" | 5 | $62.45 |
