Unhardened Shafts
1566 Steel - OD Tolerance .375-1.00" OD, +0/-.003", 1.25" OD, +0/-.004", Straightness Tolerance .012" per Ft., 4-8rms Micron Finish
316 Stainless Steel - OD Tolerance +0/-.001", Straightness Tolerance .012" per Ft., 10-16rms Micron Finish
| Unhardened Shafts with Chamfered Ends | ||||
| Part # | Material | Shaft OD | Length | Price |
|---|---|---|---|---|
| Shaft-1107 | 1566 Steel | .375" | 12.00" | $16.24 |
| Shaft-1108 | 1566 Steel | .375" | 24.00" | $32.38 |
| Shaft-1109 | 1566 Steel | .375" | 36.00" | $48.48 |
| Shaft-1110 | 1566 Steel | .375" | 48.00" | $72.64 |

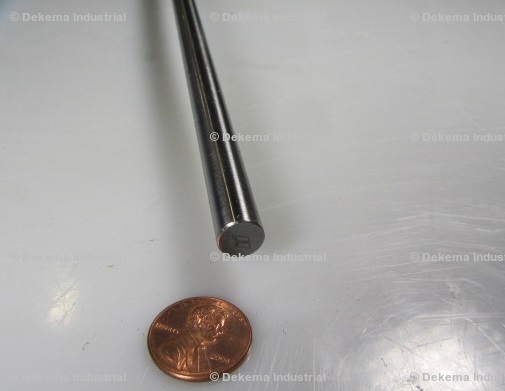

| Shaft-1111 | 1566 Steel | .375" | 60.00" | $90.80 |
| Shaft-1112 | 1566 Steel | .375" | 72.00" | $77.21 |
| Shaft-1113 | 1566 Steel | .500" | 12.00" | $16.96 |
| Shaft-1120 | 1566 Steel | .500" | 24.00" | $33.98 |
| Shaft-1121 | 1566 Steel | .500" | 36.00" | $50.88 |
| Shaft-1122 | 1566 Steel | .500" | 48.00" | $76.27 |
| Shaft-1123 | 1566 Steel | .500" | 60.00" | $86.12 |
| Shaft-1124 | 1566 Steel | .500" | 72.00" | $92.08 |
| Shaft-1125 | 1566 Steel | .625" | 12.00" | $21.50 |
| Shaft-1126 | 1566 Steel | .625" | 24.00" | $42.84 |
| Shaft-1127 | 1566 Steel | .625" | 36.00" | $64.18 |
| Shaft-1128 | 1566 Steel | .625" | 48.00" | $92.08 |
| Shaft-1129 | 1566 Steel | .625" | 60.00" | $101.04 |
| Shaft-1130 | 1566 Steel | .625" | 72.00" | $110.17 |
| Shaft-1131 | 1566 Steel | .750" | 12.00" | $27.82 |
| Shaft-1132 | 1566 Steel | .750" | 24.00" | $55.04 |
| Shaft-1133 | 1566 Steel | .750" | 36.00" | $83.16 |
| Shaft-1134 | 1566 Steel | .750" | 48.00" | $106.08 |
| Shaft-1135 | 1566 Steel | .750" | 60.00" | $118.54 |
| Shaft-1136 | 1566 Steel | .750" | 72.00" | $131.12 |
| Shaft-1137 | 1566 Steel | 1.00" | 12.00" | $55.22 |
| Shaft-1138 | 1566 Steel | 1.00" | 24.00" | $72.62 |
| Shaft-1139 | 1566 Steel | 1.00" | 36.00" | $109.00 |
| Shaft-1140 | 1566 Steel | 1.00" | 48.00" | $154.95 |
| Shaft-1141 | 1566 Steel | 1.00" | 60.00" | $179.70 |
| Shaft-1142 | 1566 Steel | 1.00" | 72.00" | $204.45 |
| Shaft-1143 | 1566 Steel | 1.25" | 12.00" | $68.94 |
| Shaft-1144 | 1566 Steel | 1.25" | 24.00" | $94.44 |
| Shaft-1145 | 1566 Steel | 1.25" | 36.00" | $141.62 |
| Shaft-1146 | 1566 Steel | 1.25" | 48.00" | $212.35 |
| Shaft-1147 | 1566 Steel | 1.25" | 60.00" | $257.08 |
| Shaft-1148 | 1566 Steel | 1.25" | 72.00" | $297.28 |
| Shaft-1313 | 316 Stainless Steel | .250" | 18.00" | $24.08 |
| Shaft-1314 | 316 Stainless Steel | .250" | 36.00" | $50.36 |
| Shaft-1315 | 316 Stainless Steel | .250" | 48.00" | $669.30 |
| Shaft-1316 | 316 Stainless Steel | .375" | 18.00" | $69.14 |

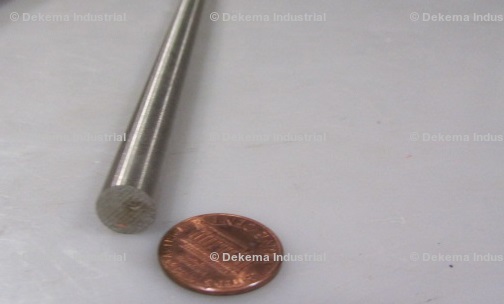

| Shaft-1317 | 316 Stainless Steel | .375" | 36.00" | $123.62 |
| Shaft-1318 | 316 Stainless Steel | .375" | 60.00" | $269.92 |
| Shaft-1319 | 316 Stainless Steel | .500" | 18.00" | $89.68 |
| Shaft-1320 | 316 Stainless Steel | .500" | 36.00" | $167.92 |
| Shaft-1321 | 316 Stainless Steel | .500" | 60.00" | $385.35 |
| Shaft-1322 | 316 Stainless Steel | .625" | 18.00" | $213.86 |
| Shaft-1323 | 316 Stainless Steel | .625" | 36.00" | $481.54 |
| Shaft-1324 | 316 Stainless Steel | .625" | 60.00" | $738.51 |
| Shaft-1325 | 316 Stainless Steel | .750" | 18.00" | $190.56 |
| Shaft-1326 | 316 Stainless Steel | .750" | 36.00" | $381.02 |
| Shaft-1327 | 316 Stainless Steel | .750" | 60.00" | $673.10 |
| Shaft-1328 | 316 Stainless Steel | 1.00" | 18.00" | $467.08 |
| Shaft-1329 | 316 Stainless Steel | 1.00" | 36.00" | $996.14 |
| Shaft-1330 | 316 Stainless Steel | 1.00" | 60.00" | $1,703.67 |
| Shaft-1331 | 316 Stainless Steel | 1.25" | 18.00" | $852.14 |
| Shaft-1332 | 316 Stainless Steel | 1.25" | 36.00" | $1,587.94 |
| Shaft-1333 | 316 Stainless Steel | 1.25" | 60.00" | $2,594.85 |
