.125" Long Spacers
| .125" Length Spacers | ||||||||
| Part # | Material | Screw Size | OD | OD Tol | ID | ID Tol | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|
| Spacer-006 | 18-8 Stainless Steel | 0 | .125" | +/-.003" | .064" | +.010"/-0 | 1 | $4.90 |
| Spacer-021 | 18-8 Stainless Steel | 2 | .125" | +/-.003" | .090" | +.010"/-0 | 1 | $4.90 |
| Spacer-041 | 18-8 Stainless Steel | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $4.15 |
| Spacer-079 | 18-8 Stainless Steel | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $3.29 |
| Spacer-060 | 18-8 Stainless Steel | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $4.33 |
| Spacer-096 | 18-8 Stainless Steel | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $3.37 |
| Spacer-113 | 18-8 Stainless Steel | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $3.29 |
| Spacer-514 | 18-8 Stainless Steel | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $4.82 |
| Spacer-604 | 18-8 Stainless Steel | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $5.13 |
| Spacer-1548 | 18-8 Stainless Steel | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $7.07 |
| Spacer-130 | 18-8 Stainless Steel | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $3.29 |
| Spacer-544 | 18-8 Stainless Steel | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $4.82 |
| Spacer-630 | 18-8 Stainless Steel | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $5.13 |
| Spacer-1573 | 18-8 Stainless Steel | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $7.07 |
| Spacer-574 | 18-8 Stainless Steel | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $4.82 |
| Spacer-656 | 18-8 Stainless Steel | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $5.13 |
| Spacer-1598 | 18-8 Stainless Steel | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $7.07 |
| Spacer-682 | 18-8 Stainless Steel | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $4.76 |
| Spacer-1623 | 18-8 Stainless Steel | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $7.07 |
| Spacer-011 | Aluminum 2011-T3 | 0 | .125" | +/-.003" | .064" | +.010"/-0 | 1 | $3.85 |
| Spacer-031 | Aluminum 2011-T3 | 2 | .125" | +/-.003" | .090" | +.010"/-0 | 1 | $3.85 |
| Spacer-232 | Aluminum 2011-T3 | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $1.06 |
| Spacer-251 | Aluminum 2011-T3 | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $0.91 |
| Spacer-3072 | Aluminum 2011-T3 | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $1.14 |
| Spacer-268 | Aluminum 2011-T3 | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $0.99 |
| Spacer-285 | Aluminum 2011-T3 | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $0.91 |
| Spacer-826 | Aluminum 2011-T3 | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $3.43 |
| Spacer-1025 | Aluminum 2011-T3 | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $2.99 |
| Spacer-1884 | Aluminum 2011-T3 | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $3.96 |
| Spacer-302 | Aluminum 2011-T3 | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $0.91 |
| Spacer-964 | Aluminum 2011-T3 | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $3.43 |
| Spacer-1050 | Aluminum 2011-T3 | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $2.99 |
| Spacer-1909 | Aluminum 2011-T3 | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $3.96 |
| Spacer-994 | Aluminum 2011-T3 | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $3.43 |
| Spacer-1075 | Aluminum 2011-T3 | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $2.99 |
| Spacer-1934 | Aluminum 2011-T3 | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $3.96 |
| Spacer-1100 | Aluminum 2011-T3 | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $2.99 |
| Spacer-1959 | Aluminum 2011-T3 | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $3.96 |
| Spacer-408 | Nylon 6-6 Natural | 2 | .187" | +/-.015" | .090" | +/-.005" | 100 | $27.64 |
| Spacer-421 | Nylon 6-6 Natural | 2 | .250" | +/-.015" | .090" | +/-.005" | 100 | $28.69 |
| Spacer-3045 | Nylon 6-6 Natural | 4 | .187" | +/-.015" | .115" | +/-.005" | 100 | $27.72 |
| Spacer-432 | Nylon 6-6 Natural | 4 | .250" | +/-.015" | .115" | +/-.005" | 100 | $28.77 |
| Spacer-444 | Nylon 6-6 Natural | 6 | .250" | +/-.015" | .140" | +/-.005" | 100 | $32.96 |
| Spacer-1406 | Nylon 6-6 Natural | 6 | .312" | +/-.015" | .140" | +/-.005" | 100 | $28.40 |
| Spacer-1452 | Nylon 6-6 Natural | 6 | .375" | +/-.015" | .140" | +/-.005" | 100 | $31.15 |
| Spacer-2270 | Nylon 6-6 Natural | 6 | .500" | +/-.015" | .140" | +/-.005" | 100 | $30.61 |
| Spacer-455 | Nylon 6-6 Natural | 8 | .250" | +/-.015" | .166" | +/-.005" | 100 | $28.69 |
| Spacer-2862 | Nylon 6-6 Natural | 8 | .312" | +/-.015" | .166" | +/-.005" | 100 | $28.40 |
| Spacer-1471 | Nylon 6-6 Natural | 8 | .375" | +/-.015" | .166" | +/-.005" | 100 | $31.15 |
| Spacer-2294 | Nylon 6-6 Natural | 8 | .500" | +/-.015" | .166" | +/-.005" | 100 | $30.61 |
| Spacer-1429 | Nylon 6-6 Natural | 10 | .312" | +/-.015" | .192" | +/-.005" | 100 | $28.40 |
| Spacer-1490 | Nylon 6-6 Natural | 10 | .375" | +/-.015" | .192" | +/-.005" | 100 | $31.15 |
| Spacer-2318 | Nylon 6-6 Natural | 10 | .500" | +/-.015" | .192" | +/-.005" | 100 | $30.61 |

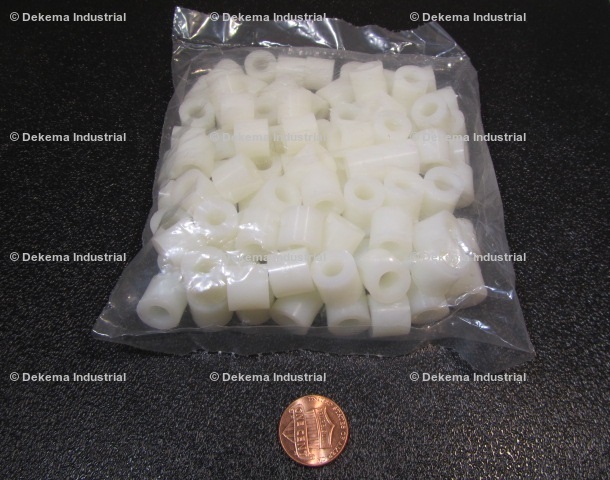

| Spacer-2342 | Nylon 6-6 Natural | 1/4" | .500" | +/-.015" | .252" | +/-.005" | 100 | $30.61 |
| Spacer-3000 | Zinc Plated Brass | 0 | .125" | +/-.003" | .064" | +.010"/-0 | 1 | $5.13 |
| Spacer-2963 | Zinc Plated Brass | 2 | .125" | +/-.003" | .090" | +.010"/-0 | 1 | $5.13 |
| Spacer-147 | Zinc Plated Brass | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 10 | $17.60 |
| Spacer-166 | Zinc Plated Brass | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $3.35 |
| Spacer-3002 | Zinc Plated Brass | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $4.39 |
| Spacer-182 | Zinc Plated Brass | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $3.43 |
| Spacer-199 | Zinc Plated Brass | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $3.35 |
| Spacer-760 | Zinc Plated Brass | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $4.08 |
| Spacer-790 | Zinc Plated Brass | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $4.55 |
| Spacer-1716 | Zinc Plated Brass | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $6.25 |
| Spacer-215 | Zinc Plated Brass | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $3.35 |
| Spacer-2973 | Zinc Plated Brass | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $4.08 |
| Spacer-837 | Zinc Plated Brass | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $4.55 |
| Spacer-1740 | Zinc Plated Brass | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $6.56 |
| Spacer-2934 | Zinc Plated Brass | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $4.08 |
| Spacer-861 | Zinc Plated Brass | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $4.55 |
| Spacer-1764 | Zinc Plated Brass | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $6.56 |
| Spacer-885 | Zinc Plated Brass | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $4.55 |
| Spacer-1788 | Zinc Plated Brass | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $6.56 |
| Spacer-016 | Zinc Plated Steel | 0 | .125" | +/-.003" | .064" | +.010"/-0 | 1 | $4.78 |
| Spacer-036 | Zinc Plated Steel | 2 | .125" | +/-.003" | .090" | +.010"/-0 | 1 | $4.78 |
| Spacer-319 | Zinc Plated Steel | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $4.38 |
| Spacer-338 | Zinc Plated Steel | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $4.44 |
| Spacer-3035 | Zinc Plated Steel | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $4.46 |
| Spacer-373 | Zinc Plated Steel | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $4.52 |
| Spacer-356 | Zinc Plated Steel | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $4.44 |
| Spacer-1177 | Zinc Plated Steel | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $4.38 |
| Spacer-1267 | Zinc Plated Steel | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $4.38 |
| Spacer-2074 | Zinc Plated Steel | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $5.34 |
| Spacer-391 | Zinc Plated Steel | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $4.44 |
| Spacer-1207 | Zinc Plated Steel | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $4.38 |
| Spacer-1289 | Zinc Plated Steel | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $4.38 |
| Spacer-2099 | Zinc Plated Steel | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $5.34 |
| Spacer-1237 | Zinc Plated Steel | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $4.38 |
| Spacer-1311 | Zinc Plated Steel | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $4.38 |
| Spacer-2124 | Zinc Plated Steel | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $5.34 |
| Spacer-2149 | Zinc Plated Steel | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $5.34 |
| Screw size number | SAE diameter (inch) | Metric diameter (mm) | Screw size number | SAE diameter (inch) | Metric diameter (mm) | |
| #0 | 0.060 | 1.524 | #9 | 0.177 | 4.496 | |
| #1 | 0.073 | 1.854 | #10 | 0.190 | 4.826 | |
| #2 | 0.086 | 2.184 | #11 | 0.203 | 5.156 | |
| #3 | 0.099 | 2.515 | #12 | 0.216 | 5.486 | |
| #4 | 0.122 | 3.099 | #14 | 0.242 | 6.147 | |
| #5 | 0.125 | 3.175 | #16 | 0.268 | 6.807 | |
| #6 | 0.138 | 3.505 | #18 | 0.294 | 7.468 | |
| #7 | 0.151 | 3.835 | #20 | 0.320 | 8.128 | |
| #8 | 0.164 | 4.166 | #24 | 0.372 | 9.449 |
