.250" Long Spacers
| .250" Length Spacers | ||||||||
| Part # | Material | Screw Size | OD | OD Tol | ID | ID Tol | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|
| Spacer-003 | 18-8 Stainless Steel | 0 | .125" | +/-.003" | .064" | +.010"/-0 | 1 | $4.90 |
| Spacer-023 | 18-8 Stainless Steel | 2 | .125" | +/-.003" | .090" | +.010"/-0 | 1 | $4.90 |
| Spacer-045 | 18-8 Stainless Steel | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $4.31 |
| Spacer-083 | 18-8 Stainless Steel | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $3.43 |
| Spacer-064 | 18-8 Stainless Steel | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $4.58 |
| Spacer-100 | 18-8 Stainless Steel | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $3.51 |
| Spacer-117 | 18-8 Stainless Steel | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $3.43 |
| Spacer-518 | 18-8 Stainless Steel | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $5.68 |
| Spacer-608 | 18-8 Stainless Steel | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $5.81 |
| Spacer-1550 | 18-8 Stainless Steel | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $7.67 |
| Spacer-134 | 18-8 Stainless Steel | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $3.43 |
| Spacer-548 | 18-8 Stainless Steel | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $5.68 |
| Spacer-634 | 18-8 Stainless Steel | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $5.81 |
| Spacer-1575 | 18-8 Stainless Steel | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $7.67 |
| Spacer-578 | 18-8 Stainless Steel | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $5.68 |
| Spacer-660 | 18-8 Stainless Steel | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $5.81 |
| Spacer-1600 | 18-8 Stainless Steel | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $7.67 |
| Spacer-1648 | 18-8 Stainless Steel | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $14.75 |
| Spacer-686 | 18-8 Stainless Steel | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $5.81 |
| Spacer-1625 | 18-8 Stainless Steel | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $7.67 |
| Spacer-1663 | 18-8 Stainless Steel | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $14.75 |
| Spacer-013 | Aluminum 2011-T3 | 0 | .125" | +/-.003" | .064" | +.010"/-0 | 1 | $3.85 |
| Spacer-033 | Aluminum 2011-T3 | 2 | .125" | +/-.003" | .090" | +.010"/-0 | 1 | $3.85 |
| Spacer-236 | Aluminum 2011-T3 | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $1.06 |
| Spacer-255 | Aluminum 2011-T3 | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $0.93 |
| Spacer-3068 | Aluminum 2011-T3 | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $1.14 |
| Spacer-272 | Aluminum 2011-T3 | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $1.01 |
| Spacer-289 | Aluminum 2011-T3 | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $0.93 |
| Spacer-3098 | Aluminum 2011-T3 | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $3.29 |
| Spacer-1029 | Aluminum 2011-T3 | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $2.99 |
| Spacer-1886 | Aluminum 2011-T3 | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $3.96 |
| Spacer-306 | Aluminum 2011-T3 | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $0.93 |
| Spacer-3097 | Aluminum 2011-T3 | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $3.29 |
| Spacer-1054 | Aluminum 2011-T3 | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $2.99 |
| Spacer-1911 | Aluminum 2011-T3 | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $3.96 |
| Spacer-3096 | Aluminum 2011-T3 | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $3.29 |
| Spacer-1079 | Aluminum 2011-T3 | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $2.99 |
| Spacer-1936 | Aluminum 2011-T3 | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $3.96 |
| Spacer-1984 | Aluminum 2011-T3 | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $4.99 |
| Spacer-1104 | Aluminum 2011-T3 | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $2.99 |
| Spacer-1961 | Aluminum 2011-T3 | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $3.96 |
| Spacer-1999 | Aluminum 2011-T3 | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $4.99 |
| Spacer-410 | Nylon 6-6 Natural | 2 | .187" | +/-.015" | .090" | +/-.005" | 100 | $29.43 |
| Spacer-423 | Nylon 6-6 Natural | 2 | .250" | +/-.015" | .090" | +/-.005" | 100 | $30.82 |
| Spacer-3043 | Nylon 6-6 Natural | 4 | .187" | +/-.015" | .115" | +/-.005" | 100 | $29.51 |
| Spacer-434 | Nylon 6-6 Natural | 4 | .250" | +/-.015" | .115" | +/-.005" | 100 | $30.90 |
| Spacer-446 | Nylon 6-6 Natural | 6 | .250" | +/-.015" | .140" | +/-.005" | 100 | $30.82 |
| Spacer-1408 | Nylon 6-6 Natural | 6 | .312" | +/-.015" | .140" | +/-.005" | 100 | $30.06 |
| Spacer-1454 | Nylon 6-6 Natural | 6 | .375" | +/-.015" | .140" | +/-.005" | 100 | $30.96 |

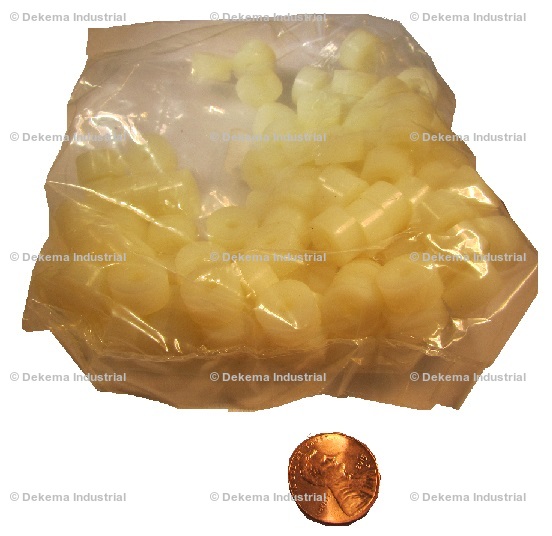

| Spacer-2272 | Nylon 6-6 Natural | 6 | .500" | +/-.015" | .140" | +/-.005" | 100 | $33.19 |
| Spacer-457 | Nylon 6-6 Natural | 8 | .250" | +/-.015" | .166" | +/-.005" | 100 | $30.82 |
| Spacer-2855 | Nylon 6-6 Natural | 8 | .312" | +/-.015" | .166" | +/-.005" | 100 | $30.06 |
| Spacer-1473 | Nylon 6-6 Natural | 8 | .375" | +/-.015" | .166" | +/-.005" | 100 | $30.96 |
| Spacer-2296 | Nylon 6-6 Natural | 8 | .500" | +/-.015" | .166" | +/-.005" | 100 | $33.19 |
| Spacer-1431 | Nylon 6-6 Natural | 10 | .312" | +/-.015" | .192" | +/-.005" | 100 | $30.06 |
| Spacer-1492 | Nylon 6-6 Natural | 10 | .375" | +/-.015" | .192" | +/-.005" | 100 | $30.96 |

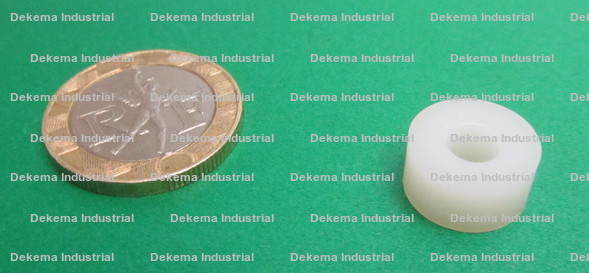

| Spacer-2320 | Nylon 6-6 Natural | 10 | .500" | +/-.015" | .192" | +/-.005" | 100 | $33.19 |
| Spacer-2344 | Nylon 6-6 Natural | 1/4" | .500" | +/-.015" | .252" | +/-.005" | 100 | $33.19 |
| Spacer-008 | Zinc Plated Brass | 0 | .125" | +/-.003" | .064" | +.010"/-0 | 1 | $5.34 |
| Spacer-2964 | Zinc Plated Brass | 2 | .125" | +/-.003" | .090" | +.010"/-0 | 1 | $4.31 |
| Spacer-151 | Zinc Plated Brass | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $4.48 |
| Spacer-170 | Zinc Plated Brass | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $3.43 |
| Spacer-3010 | Zinc Plated Brass | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $4.56 |
| Spacer-186 | Zinc Plated Brass | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $3.51 |
| Spacer-203 | Zinc Plated Brass | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $3.43 |
| Spacer-764 | Zinc Plated Brass | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $4.59 |
| Spacer-794 | Zinc Plated Brass | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $5.07 |
| Spacer-1718 | Zinc Plated Brass | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $7.04 |
| Spacer-219 | Zinc Plated Brass | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $3.43 |
| Spacer-2927 | Zinc Plated Brass | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $4.59 |
| Spacer-841 | Zinc Plated Brass | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $5.07 |
| Spacer-1742 | Zinc Plated Brass | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $7.04 |
| Spacer-2926 | Zinc Plated Brass | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $4.59 |
| Spacer-865 | Zinc Plated Brass | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $5.07 |
| Spacer-1766 | Zinc Plated Brass | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $7.04 |
| Spacer-1812 | Zinc Plated Brass | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $8.49 |
| Spacer-889 | Zinc Plated Brass | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $5.07 |
| Spacer-1790 | Zinc Plated Brass | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $7.04 |
| Spacer-1828 | Zinc Plated Brass | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $8.49 |
| Spacer-018 | Zinc Plated Steel | 0 | .125" | +/-.003" | .064" | +.010"/-0 | 1 | $4.82 |
| Spacer-038 | Zinc Plated Steel | 2 | .125" | +/-.003" | .090" | +.010"/-0 | 1 | $4.82 |
| Spacer-323 | Zinc Plated Steel | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $4.44 |
| Spacer-342 | Zinc Plated Steel | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $4.52 |
| Spacer-3030 | Zinc Plated Steel | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $4.52 |
| Spacer-377 | Zinc Plated Steel | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $4.60 |
| Spacer-360 | Zinc Plated Steel | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $4.52 |
| Spacer-1181 | Zinc Plated Steel | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $4.55 |
| Spacer-1271 | Zinc Plated Steel | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $4.55 |
| Spacer-2076 | Zinc Plated Steel | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $5.81 |
| Spacer-395 | Zinc Plated Steel | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $4.44 |
| Spacer-1211 | Zinc Plated Steel | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $4.55 |
| Spacer-1293 | Zinc Plated Steel | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $4.55 |
| Spacer-2101 | Zinc Plated Steel | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $5.81 |
| Spacer-1241 | Zinc Plated Steel | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $4.55 |
| Spacer-1315 | Zinc Plated Steel | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $4.55 |
| Spacer-2126 | Zinc Plated Steel | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $5.81 |
| Spacer-2174 | Zinc Plated Steel | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $5.76 |
| Spacer-1337 | Zinc Plated Steel | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $4.55 |
| Spacer-2151 | Zinc Plated Steel | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $5.81 |
| Spacer-2190 | Zinc Plated Steel | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $5.76 |
| Screw size number | SAE diameter (inch) | Metric diameter (mm) | Screw size number | SAE diameter (inch) | Metric diameter (mm) | |
| #0 | 0.060 | 1.524 | #9 | 0.177 | 4.496 | |
| #1 | 0.073 | 1.854 | #10 | 0.190 | 4.826 | |
| #2 | 0.086 | 2.184 | #11 | 0.203 | 5.156 | |
| #3 | 0.099 | 2.515 | #12 | 0.216 | 5.486 | |
| #4 | 0.122 | 3.099 | #14 | 0.242 | 6.147 | |
| #5 | 0.125 | 3.175 | #16 | 0.268 | 6.807 | |
| #6 | 0.138 | 3.505 | #18 | 0.294 | 7.468 | |
| #7 | 0.151 | 3.835 | #20 | 0.320 | 8.128 | |
| #8 | 0.164 | 4.166 | #24 | 0.372 | 9.449 |
