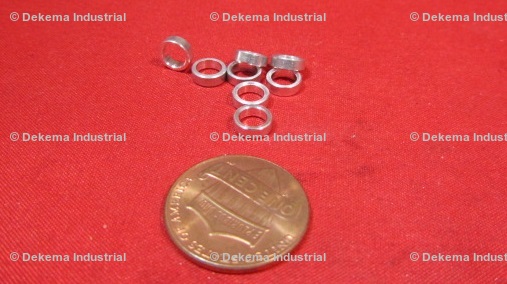

2mm Long Spacers
| 2mm Length Spacers | |||||||
| Part # | Material | Screw Size | OD | OD Tol | ID | ID Tol | Price Each |
|---|---|---|---|---|---|---|---|
| Spacer-2366 | 18-8 Stainless Steel | M3 | 6mm | +/-.1mm | 3.2mm | +.3mm/-.0mm | $5.03 |
| Spacer-2968 | 18-8 Stainless Steel | M3 | 8mm | +/-.1mm | 3.2mm | +.3mm/-.0mm | $5.58 |
| Spacer-2379 | 18-8 Stainless Steel | M4 | 6mm | +/-.1mm | 4.3mm | +.3mm/-.0mm | $5.03 |
| Spacer-2967 | 18-8 Stainless Steel | M4 | 8mm | +/-.1mm | 4.3mm | +.3mm/-.0mm | $5.58 |
| Spacer-2427 | 18-8 Stainless Steel | M4 | 10mm | +/-.1mm | 4.3mm | +.3mm/-.0mm | $6.59 |
| Spacer-2966 | 18-8 Stainless Steel | M5 | 8mm | +/-.1mm | 5.3mm | +.3mm/-.0mm | $5.58 |
| Spacer-2440 | 18-8 Stainless Steel | M5 | 10mm | +/-.1mm | 5.3mm | +.3mm/-.0mm | $6.59 |
| Spacer-2547 | Aluminum 2011-T3 | M3 | 6mm | +/-.1mm | 3.2mm | +.3mm/-.0mm | $4.11 |
| Spacer-2571 | Aluminum 2011-T3 | M3 | 8mm | +/-.1mm | 3.2mm | +.3mm/-.0mm | $4.17 |
| Spacer-2559 | Aluminum 2011-T3 | M4 | 6mm | +/-.1mm | 4.3mm | +.3mm/-.0mm | $4.11 |
| Spacer-2585 | Aluminum 2011-T3 | M4 | 8mm | +/-.1mm | 4.3mm | +.3mm/-.0mm | $4.11 |
| Spacer-2612 | Aluminum 2011-T3 | M4 | 10mm | +/-.1mm | 4.3mm | +.3mm/-.0mm | $4.47 |
| Spacer-2599 | Aluminum 2011-T3 | M5 | 8mm | +/-.1mm | 5.3mm | +.3mm/-.0mm | $4.17 |
| Spacer-2626 | Aluminum 2011-T3 | M5 | 10mm | +/-.1mm | 5.3mm | +.3mm/-.0mm | $4.47 |
| Spacer-2640 | Nylon 6-6 Natural | M3 | 6mm | +/-.1mm | 3.2mm | +.3mm/-.0mm | $3.39 |
| Spacer-2666 | Nylon 6-6 Natural | M3 | 8mm | +/-.1mm | 3.2mm | +.3mm/-.0mm | $3.39 |
| Spacer-2653 | Nylon 6-6 Natural | M4 | 6mm | +/-.1mm | 4.3mm | +.3mm/-.0mm | $3.39 |
| Spacer-2679 | Nylon 6-6 Natural | M4 | 8mm | +/-.1mm | 4.3mm | +.3mm/-.0mm | $3.39 |
| Spacer-2705 | Nylon 6-6 Natural | M4 | 10mm | +/-.1mm | 4.3mm | +.3mm/-.0mm | $3.46 |
| Spacer-2692 | Nylon 6-6 Natural | M5 | 8mm | +/-.1mm | 5.3mm | +.3mm/-.0mm | $3.39 |
| Spacer-2717 | Nylon 6-6 Natural | M5 | 10mm | +/-.1mm | 5.3mm | +.3mm/-.0mm | $3.46 |
| Spacer-2453 | Zinc Plated Brass | M3 | 6mm | +/-.1mm | 3.2mm | +.3mm/-.0mm | $4.68 |
| Spacer-2479 | Zinc Plated Brass | M3 | 8mm | +/-.1mm | 3.2mm | +.3mm/-.0mm | $4.89 |
| Spacer-2466 | Zinc Plated Brass | M4 | 6mm | +/-.1mm | 4.3mm | +.3mm/-.0mm | $4.68 |
| Spacer-2493 | Zinc Plated Brass | M4 | 8mm | +/-.1mm | 4.3mm | +.3mm/-.0mm | $4.89 |
| Spacer-2521 | Zinc Plated Brass | M4 | 10mm | +/-.1mm | 4.3mm | +.3mm/-.0mm | $4.61 |
| Spacer-2507 | Zinc Plated Brass | M5 | 8mm | +/-.1mm | 5.3mm | +.3mm/-.0mm | $4.89 |
| Spacer-2534 | Zinc Plated Brass | M5 | 10mm | +/-.1mm | 5.3mm | +.3mm/-.0mm | $4.61 |
| Screw size number | SAE diameter (inch) | Metric diameter (mm) | Screw size number | SAE diameter (inch) | Metric diameter (mm) | |
| #0 | 0.060 | 1.524 | #9 | 0.177 | 4.496 | |
| #1 | 0.073 | 1.854 | #10 | 0.190 | 4.826 | |
| #2 | 0.086 | 2.184 | #11 | 0.203 | 5.156 | |
| #3 | 0.099 | 2.515 | #12 | 0.216 | 5.486 | |
| #4 | 0.122 | 3.099 | #14 | 0.242 | 6.147 | |
| #5 | 0.125 | 3.175 | #16 | 0.268 | 6.807 | |
| #6 | 0.138 | 3.505 | #18 | 0.294 | 7.468 | |
| #7 | 0.151 | 3.835 | #20 | 0.320 | 8.128 | |
| #8 | 0.164 | 4.166 | #24 | 0.372 | 9.449 |
