.312" Long Spacers
| .312" Length Spacers | ||||||||
| Part # | Material | Screw Size | OD | OD Tol | ID | ID Tol | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|
| Spacer-004 | 18-8 Stainless Steel | 0 | .125" | +/-.003" | .064" | +.010"/-0 | 1 | $5.47 |
| Spacer-024 | 18-8 Stainless Steel | 2 | .125" | +/-.003" | .090" | +.010"/-0 | 1 | $5.47 |
| Spacer-047 | 18-8 Stainless Steel | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $4.31 |
| Spacer-066 | 18-8 Stainless Steel | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $4.39 |
| Spacer-119 | 18-8 Stainless Steel | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $4.46 |
| Spacer-520 | 18-8 Stainless Steel | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $5.26 |
| Spacer-610 | 18-8 Stainless Steel | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $5.83 |
| Spacer-1551 | 18-8 Stainless Steel | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $8.37 |
| Spacer-550 | 18-8 Stainless Steel | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $5.26 |
| Spacer-636 | 18-8 Stainless Steel | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $5.83 |
| Spacer-1576 | 18-8 Stainless Steel | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $8.37 |
| Spacer-580 | 18-8 Stainless Steel | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $5.26 |
| Spacer-662 | 18-8 Stainless Steel | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $5.83 |
| Spacer-1601 | 18-8 Stainless Steel | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $8.37 |
| Spacer-1649 | 18-8 Stainless Steel | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $15.44 |
| Spacer-688 | 18-8 Stainless Steel | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $5.83 |
| Spacer-1626 | 18-8 Stainless Steel | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $8.37 |
| Spacer-1664 | 18-8 Stainless Steel | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $15.44 |
| Spacer-014 | Aluminum 2011-T3 | 0 | .125" | +/-.003" | .064" | +.010"/-0 | 1 | $3.83 |
| Spacer-034 | Aluminum 2011-T3 | 2 | .125" | +/-.003" | .090" | +.010"/-0 | 1 | $3.83 |
| Spacer-238 | Aluminum 2011-T3 | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $1.08 |
| Spacer-257 | Aluminum 2011-T3 | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $0.93 |
| Spacer-3107 | Aluminum 2011-T3 | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $1.16 |
| Spacer-274 | Aluminum 2011-T3 | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $1.01 |
| Spacer-291 | Aluminum 2011-T3 | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $0.93 |
| Spacer-832 | Aluminum 2011-T3 | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $3.31 |
| Spacer-1031 | Aluminum 2011-T3 | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $2.99 |
| Spacer-1887 | Aluminum 2011-T3 | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $3.96 |
| Spacer-308 | Aluminum 2011-T3 | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $0.93 |
| Spacer-970 | Aluminum 2011-T3 | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $3.31 |
| Spacer-1056 | Aluminum 2011-T3 | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $2.99 |
| Spacer-1912 | Aluminum 2011-T3 | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $3.96 |
| Spacer-1000 | Aluminum 2011-T3 | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $3.31 |
| Spacer-1081 | Aluminum 2011-T3 | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $2.99 |
| Spacer-1937 | Aluminum 2011-T3 | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $3.96 |
| Spacer-1985 | Aluminum 2011-T3 | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $5.01 |
| Spacer-1106 | Aluminum 2011-T3 | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $2.99 |

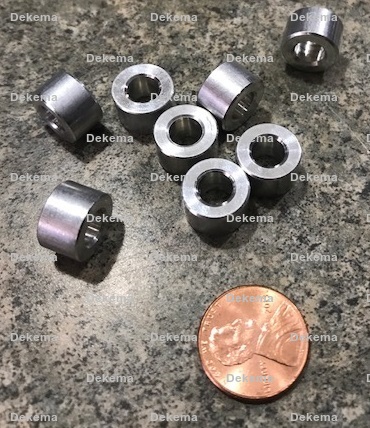

| Spacer-1962 | Aluminum 2011-T3 | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $3.96 |
| Spacer-2000 | Aluminum 2011-T3 | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $5.01 |
| Spacer-411 | Nylon 6-6 Natural | 2 | .187" | +/-.015" | .090" | +/-.005" | 100 | $30.16 |
| Spacer-424 | Nylon 6-6 Natural | 2 | .250" | +/-.015" | .090" | +/-.005" | 100 | $32.22 |
| Spacer-3042 | Nylon 6-6 Natural | 4 | .187" | +/-.015" | .115" | +/-.005" | 100 | $30.24 |
| Spacer-435 | Nylon 6-6 Natural | 4 | .250" | +/-.015" | .115" | +/-.005" | 100 | $32.30 |
| Spacer-447 | Nylon 6-6 Natural | 6 | .250" | +/-.015" | .140" | +/-.005" | 100 | $32.22 |
| Spacer-1409 | Nylon 6-6 Natural | 6 | .312" | +/-.015" | .140" | +/-.005" | 100 | $30.84 |
| Spacer-1455 | Nylon 6-6 Natural | 6 | .375" | +/-.015" | .140" | +/-.005" | 100 | $31.80 |
| Spacer-2885 | Nylon 6-6 Natural | 6 | .500" | +/-.015" | .140" | +/-.005" | 100 | $34.55 |
| Spacer-458 | Nylon 6-6 Natural | 8 | .250" | +/-.015" | .166" | +/-.005" | 100 | $32.22 |
| Spacer-2860 | Nylon 6-6 Natural | 8 | .312" | +/-.015" | .166" | +/-.005" | 100 | $30.84 |
| Spacer-1474 | Nylon 6-6 Natural | 8 | .375" | +/-.015" | .166" | +/-.005" | 100 | $31.80 |
| Spacer-2883 | Nylon 6-6 Natural | 8 | .500" | +/-.015" | .166" | +/-.005" | 100 | $34.55 |
| Spacer-1432 | Nylon 6-6 Natural | 10 | .312" | +/-.015" | .192" | +/-.005" | 100 | $30.84 |
| Spacer-1493 | Nylon 6-6 Natural | 10 | .375" | +/-.015" | .192" | +/-.005" | 100 | $31.80 |
| Spacer-2882 | Nylon 6-6 Natural | 10 | .500" | +/-.015" | .192" | +/-.005" | 100 | $34.55 |
| Spacer-2986 | Nylon 6-6 Natural | 1/4" | .500" | +/-.015" | .252" | +/-.005" | 100 | $34.55 |
| Spacer-009 | Zinc Plated Brass | 0 | .125" | +/-.003" | .064" | +.010"/-0 | 1 | $5.09 |
| Spacer-029 | Zinc Plated Brass | 2 | .125" | +/-.003" | .090" | +.010"/-0 | 1 | $5.41 |
| Spacer-153 | Zinc Plated Brass | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $4.46 |
| Spacer-172 | Zinc Plated Brass | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $3.35 |
| Spacer-3008 | Zinc Plated Brass | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $4.75 |
| Spacer-188 | Zinc Plated Brass | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $3.60 |
| Spacer-205 | Zinc Plated Brass | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $3.52 |
| Spacer-2910 | Zinc Plated Brass | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $4.73 |
| Spacer-796 | Zinc Plated Brass | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $8.22 |
| Spacer-1719 | Zinc Plated Brass | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $7.02 |
| Spacer-221 | Zinc Plated Brass | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $3.52 |
| Spacer-2922 | Zinc Plated Brass | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $4.73 |
| Spacer-843 | Zinc Plated Brass | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $8.64 |
| Spacer-1743 | Zinc Plated Brass | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $7.02 |
| Spacer-2935 | Zinc Plated Brass | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $4.73 |
| Spacer-867 | Zinc Plated Brass | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $8.22 |
| Spacer-1767 | Zinc Plated Brass | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $7.36 |
| Spacer-1813 | Zinc Plated Brass | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $9.12 |
| Spacer-891 | Zinc Plated Brass | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $8.22 |
| Spacer-1791 | Zinc Plated Brass | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $7.36 |
| Spacer-1829 | Zinc Plated Brass | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $9.12 |
| Spacer-019 | Zinc Plated Steel | 0 | .125" | +/-.003" | .064" | +.010"/-0 | 1 | $5.09 |
| Spacer-039 | Zinc Plated Steel | 2 | .125" | +/-.003" | .090" | +.010"/-0 | 1 | $6.12 |
| Spacer-325 | Zinc Plated Steel | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $4.46 |
| Spacer-344 | Zinc Plated Steel | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $4.36 |
| Spacer-3029 | Zinc Plated Steel | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $4.54 |
| Spacer-379 | Zinc Plated Steel | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $4.44 |
| Spacer-362 | Zinc Plated Steel | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $4.57 |
| Spacer-1183 | Zinc Plated Steel | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $4.63 |
| Spacer-1273 | Zinc Plated Steel | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $4.63 |
| Spacer-2077 | Zinc Plated Steel | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $5.62 |
| Spacer-397 | Zinc Plated Steel | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $4.57 |
| Spacer-1213 | Zinc Plated Steel | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $4.63 |
| Spacer-1295 | Zinc Plated Steel | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $4.63 |
| Spacer-2102 | Zinc Plated Steel | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $5.62 |
| Spacer-1243 | Zinc Plated Steel | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $4.63 |
| Spacer-1317 | Zinc Plated Steel | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $4.63 |
| Spacer-2127 | Zinc Plated Steel | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $5.87 |
| Spacer-2175 | Zinc Plated Steel | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $5.97 |
| Spacer-1339 | Zinc Plated Steel | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $4.63 |
| Spacer-2152 | Zinc Plated Steel | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $5.87 |
| Spacer-2191 | Zinc Plated Steel | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $5.97 |
| Screw size number | SAE diameter (inch) | Metric diameter (mm) | Screw size number | SAE diameter (inch) | Metric diameter (mm) | |
| #0 | 0.060 | 1.524 | #9 | 0.177 | 4.496 | |
| #1 | 0.073 | 1.854 | #10 | 0.190 | 4.826 | |
| #2 | 0.086 | 2.184 | #11 | 0.203 | 5.156 | |
| #3 | 0.099 | 2.515 | #12 | 0.216 | 5.486 | |
| #4 | 0.122 | 3.099 | #14 | 0.242 | 6.147 | |
| #5 | 0.125 | 3.175 | #16 | 0.268 | 6.807 | |
| #6 | 0.138 | 3.505 | #18 | 0.294 | 7.468 | |
| #7 | 0.151 | 3.835 | #20 | 0.320 | 8.128 | |
| #8 | 0.164 | 4.166 | #24 | 0.372 | 9.449 |
