.625" Long Spacers
| .625" Length Spacers | ||||||||
| Part # | Material | Screw Size | OD | OD Tol | ID | ID Tol | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|
| Spacer-055 | 18-8 Stainless Steel | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $4.73 |
| Spacer-093 | 18-8 Stainless Steel | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $4.13 |
| Spacer-074 | 18-8 Stainless Steel | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $4.81 |
| Spacer-110 | 18-8 Stainless Steel | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $4.21 |
| Spacer-127 | 18-8 Stainless Steel | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $4.13 |
| Spacer-528 | 18-8 Stainless Steel | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $7.04 |
| Spacer-619 | 18-8 Stainless Steel | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $6.67 |
| Spacer-1556 | 18-8 Stainless Steel | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $9.61 |
| Spacer-144 | 18-8 Stainless Steel | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $4.13 |
| Spacer-558 | 18-8 Stainless Steel | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $7.04 |
| Spacer-645 | 18-8 Stainless Steel | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $6.67 |
| Spacer-1581 | 18-8 Stainless Steel | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $9.61 |
| Spacer-588 | 18-8 Stainless Steel | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $7.04 |
| Spacer-671 | 18-8 Stainless Steel | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $6.67 |
| Spacer-1606 | 18-8 Stainless Steel | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $9.61 |
| Spacer-697 | 18-8 Stainless Steel | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $6.67 |
| Spacer-1631 | 18-8 Stainless Steel | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $9.61 |
| Spacer-1689 | 18-8 Stainless Steel | 3/8" | .750" | +/-.003" | .380"" | +.010"/-0 | 1 | $28.15 |
| Spacer-1680 | 18-8 Stainless Steel | 5/16" | .750" | +/-.003" | .315" | +.010"/-0 | 1 | $28.15 |
| Spacer-246 | Aluminum 2011-T3 | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $1.33 |
| Spacer-265 | Aluminum 2011-T3 | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $1.08 |
| Spacer-3111 | Aluminum 2011-T3 | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $1.41 |
| Spacer-282 | Aluminum 2011-T3 | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $1.16 |
| Spacer-299 | Aluminum 2011-T3 | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $1.08 |
| Spacer-948 | Aluminum 2011-T3 | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $3.73 |
| Spacer-1039 | Aluminum 2011-T3 | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $3.14 |
| Spacer-1892 | Aluminum 2011-T3 | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $4.23 |
| Spacer-316 | Aluminum 2011-T3 | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $1.08 |
| Spacer-978 | Aluminum 2011-T3 | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $3.73 |
| Spacer-1064 | Aluminum 2011-T3 | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $3.14 |
| Spacer-1917 | Aluminum 2011-T3 | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $4.23 |
| Spacer-1008 | Aluminum 2011-T3 | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $3.73 |
| Spacer-1089 | Aluminum 2011-T3 | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $3.14 |
| Spacer-1942 | Aluminum 2011-T3 | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $4.38 |
| Spacer-1990 | Aluminum 2011-T3 | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $4.99 |
| Spacer-1114 | Aluminum 2011-T3 | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $3.14 |
| Spacer-1967 | Aluminum 2011-T3 | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $4.23 |
| Spacer-2005 | Aluminum 2011-T3 | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $4.99 |
| Spacer-2026 | Aluminum 2011-T3 | 3/8" | .750" | +/-.003" | .380"" | +.010"/-0 | 1 | $5.99 |
| Spacer-2016 | Aluminum 2011-T3 | 5/16" | .750" | +/-.003" | .315" | +.010"/-0 | 1 | $5.99 |
| Spacer-416 | Nylon 6-6 Natural | 2 | .187" | +/-.015" | .090" | +/-.005" | 100 | $39.20 |
| Spacer-429 | Nylon 6-6 Natural | 2 | .250" | +/-.015" | .090" | +/-.005" | 100 | $35.37 |
| Spacer-2869 | Nylon 6-6 Natural | 4 | .187" | +/-.015" | .115" | +/-.005" | 100 | $39.28 |

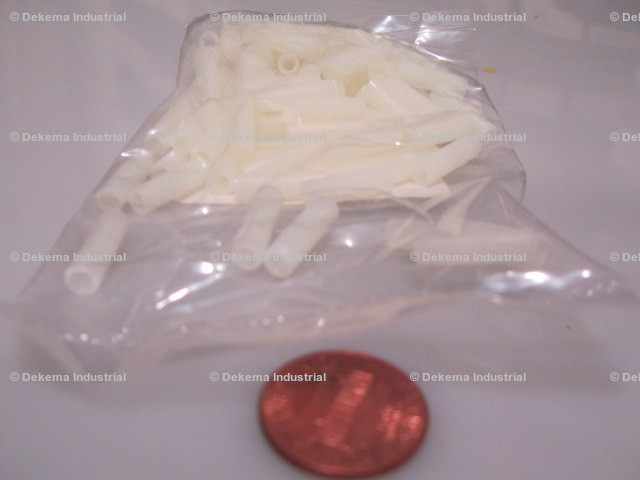

| Spacer-440 | Nylon 6-6 Natural | 4 | .250" | +/-.015" | .115" | +/-.005" | 100 | $35.45 |
| Spacer-452 | Nylon 6-6 Natural | 6 | .250" | +/-.015" | .140" | +/-.005" | 100 | $35.37 |
| Spacer-1414 | Nylon 6-6 Natural | 6 | .312" | +/-.015" | .140" | +/-.005" | 100 | $35.00 |
| Spacer-1460 | Nylon 6-6 Natural | 6 | .375" | +/-.015" | .140" | +/-.005" | 100 | $35.77 |
| Spacer-2277 | Nylon 6-6 Natural | 6 | .500" | +/-.015" | .140" | +/-.005" | 100 | $38.75 |
| Spacer-463 | Nylon 6-6 Natural | 8 | .250" | +/-.015" | .166" | +/-.005" | 100 | $35.37 |
| Spacer-2859 | Nylon 6-6 Natural | 8 | .312" | +/-.015" | .166" | +/-.005" | 100 | $35.00 |
| Spacer-1479 | Nylon 6-6 Natural | 8 | .375" | +/-.015" | .166" | +/-.005" | 100 | $35.77 |
| Spacer-2301 | Nylon 6-6 Natural | 8 | .500" | +/-.015" | .166" | +/-.005" | 100 | $38.75 |
| Spacer-1437 | Nylon 6-6 Natural | 10 | .312" | +/-.015" | .192" | +/-.005" | 100 | $35.00 |
| Spacer-1498 | Nylon 6-6 Natural | 10 | .375" | +/-.015" | .192" | +/-.005" | 100 | $35.77 |
| Spacer-2325 | Nylon 6-6 Natural | 10 | .500" | +/-.015" | .192" | +/-.005" | 100 | $38.75 |
| Spacer-2349 | Nylon 6-6 Natural | 1/4" | .500" | +/-.015" | .252" | +/-.005" | 100 | $38.75 |
| Spacer-161 | Zinc Plated Brass | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $4.97 |
| Spacer-179 | Zinc Plated Brass | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $4.02 |
| Spacer-3014 | Zinc Plated Brass | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $5.28 |
| Spacer-196 | Zinc Plated Brass | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $4.27 |
| Spacer-212 | Zinc Plated Brass | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $4.19 |
| Spacer-773 | Zinc Plated Brass | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $5.57 |
| Spacer-804 | Zinc Plated Brass | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $6.41 |
| Spacer-1724 | Zinc Plated Brass | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $9.27 |
| Spacer-229 | Zinc Plated Brass | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $4.19 |
| Spacer-2958 | Zinc Plated Brass | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $5.57 |
| Spacer-851 | Zinc Plated Brass | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $6.73 |
| Spacer-1748 | Zinc Plated Brass | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $9.27 |
| Spacer-2957 | Zinc Plated Brass | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $5.85 |
| Spacer-875 | Zinc Plated Brass | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $6.73 |
| Spacer-1772 | Zinc Plated Brass | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $9.27 |
| Spacer-1818 | Zinc Plated Brass | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $16.81 |
| Spacer-899 | Zinc Plated Brass | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $6.73 |
| Spacer-1796 | Zinc Plated Brass | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $9.71 |
| Spacer-1834 | Zinc Plated Brass | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $17.65 |
| Spacer-1856 | Zinc Plated Brass | 3/8" | .750" | +/-.003" | .380"" | +.010"/-0 | 1 | $21.68 |
| Spacer-1846 | Zinc Plated Brass | 5/16" | .750" | +/-.003" | .315" | +.010"/-0 | 1 | $21.68 |
| Spacer-333 | Zinc Plated Steel | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $5.51 |
| Spacer-353 | Zinc Plated Steel | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $5.95 |
| Spacer-3023 | Zinc Plated Steel | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $5.59 |
| Spacer-388 | Zinc Plated Steel | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $6.03 |
| Spacer-370 | Zinc Plated Steel | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $5.95 |
| Spacer-1191 | Zinc Plated Steel | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $5.62 |
| Spacer-1279 | Zinc Plated Steel | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $5.62 |
| Spacer-2082 | Zinc Plated Steel | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $7.42 |
| Spacer-405 | Zinc Plated Steel | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $5.95 |
| Spacer-1221 | Zinc Plated Steel | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $5.62 |
| Spacer-1301 | Zinc Plated Steel | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $5.62 |
| Spacer-2107 | Zinc Plated Steel | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $7.42 |
| Spacer-1251 | Zinc Plated Steel | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $5.62 |
| Spacer-1323 | Zinc Plated Steel | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $5.62 |
| Spacer-2132 | Zinc Plated Steel | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $7.42 |
| Spacer-2180 | Zinc Plated Steel | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $7.61 |
| Spacer-1345 | Zinc Plated Steel | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $5.62 |
| Spacer-2157 | Zinc Plated Steel | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $7.42 |
| Spacer-2196 | Zinc Plated Steel | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $7.61 |
| Spacer-2218 | Zinc Plated Steel | 3/8" | .750" | +/-.003" | .380"" | +.010"/-0 | 1 | $9.94 |
| Spacer-2208 | Zinc Plated Steel | 5/16" | .750" | +/-.003" | .315" | +.010"/-0 | 1 | $9.94 |
| Screw size number | SAE diameter (inch) | Metric diameter (mm) | Screw size number | SAE diameter (inch) | Metric diameter (mm) | |
| #0 | 0.060 | 1.524 | #9 | 0.177 | 4.496 | |
| #1 | 0.073 | 1.854 | #10 | 0.190 | 4.826 | |
| #2 | 0.086 | 2.184 | #11 | 0.203 | 5.156 | |
| #3 | 0.099 | 2.515 | #12 | 0.216 | 5.486 | |
| #4 | 0.122 | 3.099 | #14 | 0.242 | 6.147 | |
| #5 | 0.125 | 3.175 | #16 | 0.268 | 6.807 | |
| #6 | 0.138 | 3.505 | #18 | 0.294 | 7.468 | |
| #7 | 0.151 | 3.835 | #20 | 0.320 | 8.128 | |
| #8 | 0.164 | 4.166 | #24 | 0.372 | 9.449 |
