Spring Pins: 2.5mm Dia.

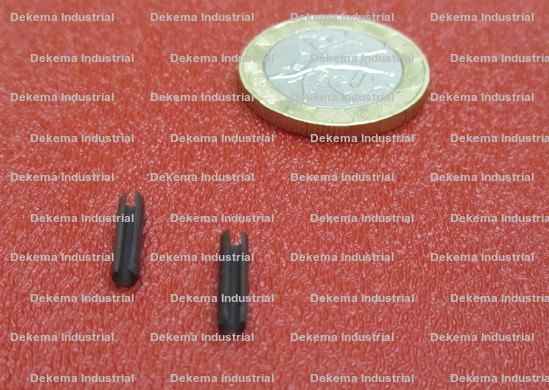

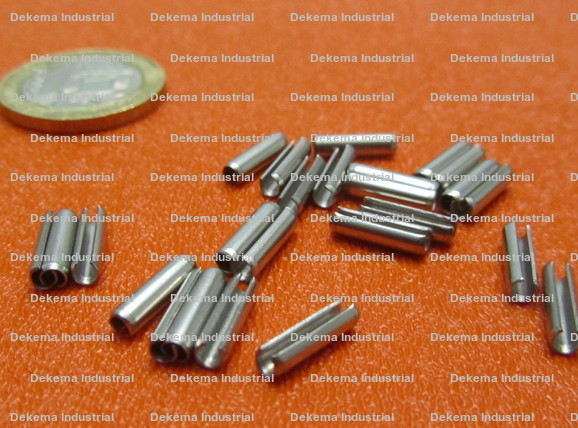

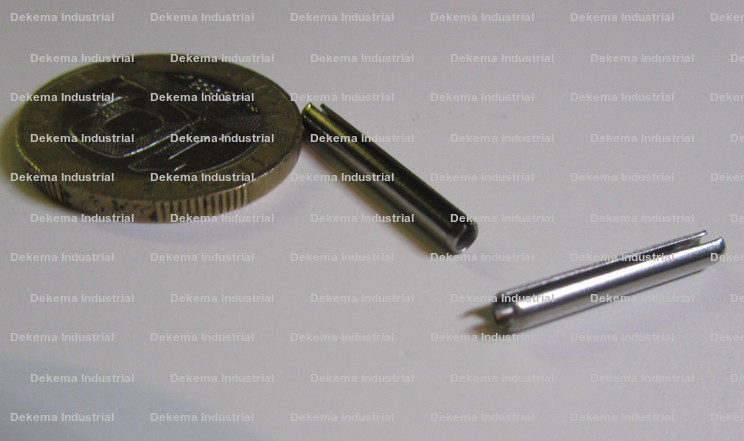

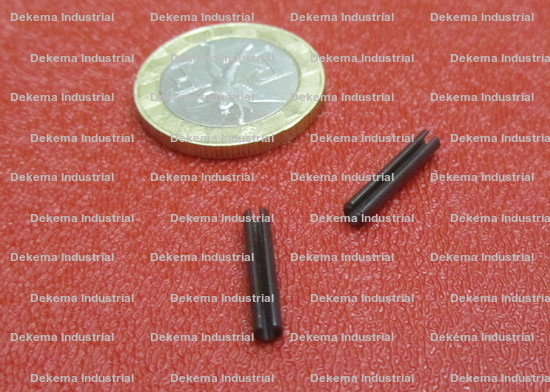

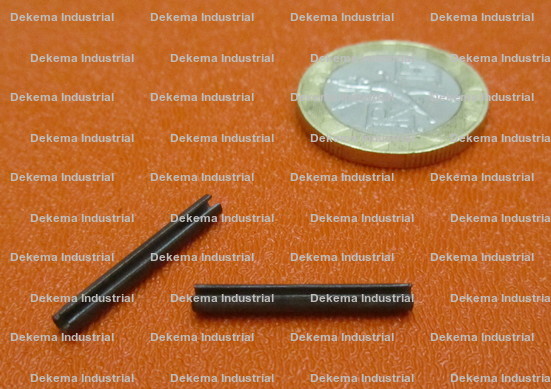

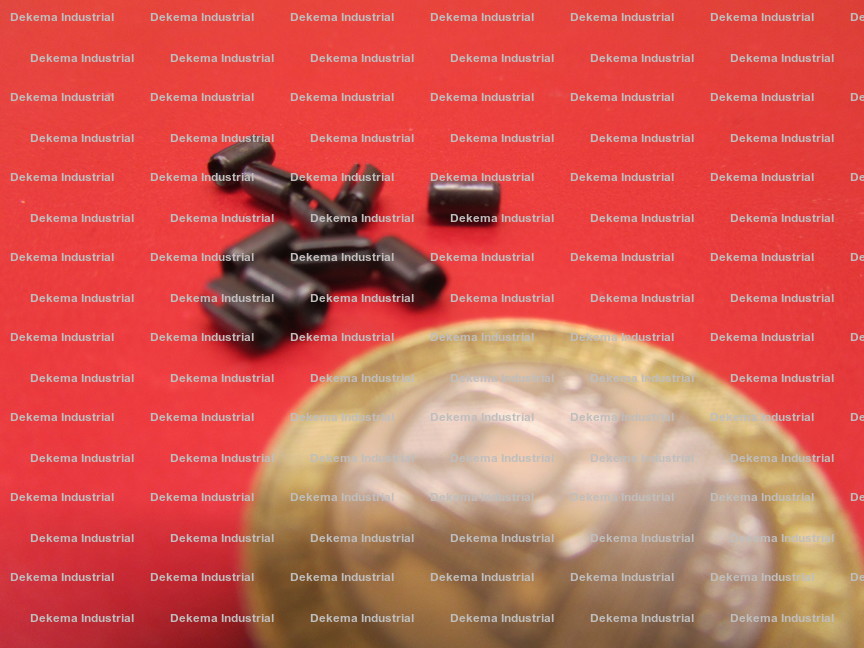

| Slotted Spring Pin | Coiled Spring Pin |
| 2.5mm Dia. Spring Pins | ||||||
| Part # | Diameter | Length | Material | Pkg. Qty. | Coiled or Slotted | Pkg. Price |
|---|---|---|---|---|---|---|
| DSP-1122 | 2.5mm | 10mm | 18-8 Stainless Steel | 50 | Slotted | $31.20 |
| DSP-1121 | 2.5mm | 20mm | 18-8 Stainless Steel | 50 | Slotted | $21.00 |
| DSP-1120 | 2.5mm | 30mm | 18-8 Stainless Steel | 50 | Slotted | $23.32 |
| DSP-982 | 2.5mm | 12mm | Plain Steel C1070-C1095 | 50 | Coiled | $17.72 |
| DSP-981 | 2.5mm | 16mm | Plain Steel C1070-C1095 | 100 | Coiled | $33.88 |
| DSP-988 | 2.5mm | 8mm | Plain Steel C1070-C1095 | 100 | Coiled | $32.24 |
| DSP-339 | 2.5mm | 10mm | High Carbon Spring Steel | 300 | Slotted | $28.08 |
| DSP-338 | 2.5mm | 12mm | High Carbon Spring Steel | 300 | Slotted | $28.32 |
| DSP-336 | 2.5mm | 14mm | High Carbon Spring Steel | 300 | Slotted | $28.68 |
| DSP-335 | 2.5mm | 16mm | High Carbon Spring Steel | 300 | Slotted | $29.76 |
| DSP-370 | 2.5mm | 18mm | High Carbon Spring Steel | 200 | Slotted | $20.08 |
| DSP-1193 | 2.5mm | 20mm | High Carbon Spring Steel | 200 | Slotted | $29.90 |
| DSP-372 | 2.5mm | 20mm | High Carbon Spring Steel | 200 | Slotted | $20.08 |
| DSP-347 | 2.5mm | 22mm | High Carbon Spring Steel | 200 | Slotted | $20.64 |
| DSP-382 | 2.5mm | 24mm | High Carbon Spring Steel | 200 | Slotted | $21.20 |
| DSP-381 | 2.5mm | 26mm | High Carbon Spring Steel | 200 | Slotted | $22.56 |
| DSP-380 | 2.5mm | 28mm | High Carbon Spring Steel | 200 | Slotted | $23.84 |
| DSP-1192 | 2.5mm | 30mm | High Carbon Spring Steel | 100 | Slotted | $16.98 |
| DSP-379 | 2.5mm | 30mm | High Carbon Spring Steel | 200 | Slotted | $25.08 |
| DSP-342 | 2.5mm | 5mm | High Carbon Spring Steel | 300 | Slotted | $26.40 |
| DSP-341 | 2.5mm | 6mm | High Carbon Spring Steel | 300 | Slotted | $26.82 |
| DSP-340 | 2.5mm | 8mm | High Carbon Spring Steel | 300 | Slotted | $27.42 |
| Tolerances | |
| Lengths 0-1.0" | +/-.015" |
| Lengths 1.125"-2.0" | +/-.020" |
| Lengths 2.25"-3.0" | +/-.025" |
| Lengths 3.25" and up | +/-.030" |
| Lengths 0-24mm | +/- .40mm |
| Lengths 26mm-50mm | +/- .50mm |
| Lengths 55mm-60mm | +/- .60mm |
| Lengths 80mm and up | +/- .75mm |
| Metric | Imperial Inches | ||||||||||||||||||||
| Nominal Dia. | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | 1/16" | 5/64" | 3/32" | 1/8" | 5/32" | 3/16" | 7/32" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | |
| Act. Dia | Min. mm | 2.13 | 2.65 | 3.15 | 4.20 | 5.25 | 6.25 | 8.30 | 0.066 | 0.083 | 0.099 | 0.131 | 0.162 | 0.194 | 0.226 | 0.258 | 0.321 | 0.385 | 0.448 | 0.513 | 0.640 |
| Max. mm | 2.25 | 2.78 | 3.30 | 4.40 | 5.50 | 6.50 | 8.63 | 0.069 | 0.086 | 0.103 | 0.135 | 0.137 | 0.199 | 0.232 | 0.264 | 0.330 | 0.395 | 0.459 | 0.524 | 0.653 | |
| Wall Thickness | * | * | * | * | * | * | * | 0.012 | 0.018 | 0.022 | 0.028 | 0.032 | 0.040 | 0.048 | 0.048 | 0.062 | 0.077 | 0.077 | 0.094 | 0.125 | |
| Suggested | Min. mm | 2.00 | 2.50 | 3.00 | 4.00 | 5.10 | 6.00 | 8.00 | 0.062 | 0.078 | 0.094 | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 | 0.312 | 0.375 | 0.437 | 0.500 | 0.625 |
| Hole Size | Max. mm | 2.10 | 2.60 | 3.10 | 4.12 | 5.12 | 6.12 | 8.15 | 0.065 | 0.081 | 0.097 | 0.129 | 0.160 | 0.192 | 0.224 | 0.256 | 0.318 | 0.382 | 0.445 | 0.510 | 0.636 |
| Shear Strength Lbs | 562 | 876 | 1236 | 2158 | 3372 | 4945 | 8767 | * | * | * | * | * | * | * | * | * | * | * | * | * | |
| Shear Strength Lbs 18-8 SS | * | * | * | * | * | * | * | 250 | 460 | 670 | 1090 | 1600 | 2425 | 3400 | 4100 | 6300 | 9500 | 11500 | 15800 | 18800 | |
| Shear Strength Lbs 420 SS | * | * | * | * | * | * | * | 430 | 800 | 1150 | 1875 | 2750 | 4150 | 5850 | 7050 | 10800 | 16300 | 19800 | 27100 | 46000 | |
