Slotted Spring Pins: 3.5mm Dia.

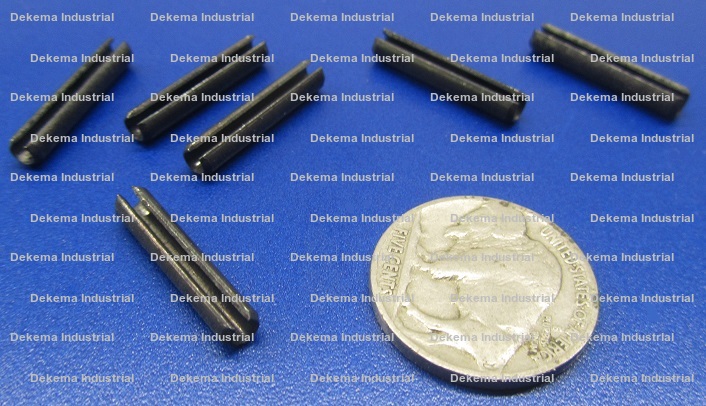

Slotted Spring Pin

3.5mm Dia. Spring Pins Slotted High Carbon Spring Steel

Part #	Diameter	Length	Pkg. Qty.	Pkg. Price
DSP-322	3.5mm	4mm	200	$20.52
DSP-383	3.5mm	5mm	200	$21.08
DSP-307	3.5mm	8mm	200	$21.92
DSP-305	3.5mm	10mm	200	$22.20
DSP-303	3.5mm	12mm	200	$22.56
DSP-302	3.5mm	14mm	200	$22.84
DSP-301	3.5mm	16mm	200	$23.28
DSP-300	3.5mm	18mm	200	$23.96
DSP-299	3.5mm	20mm	200	$24.40
DSP-298	3.5mm	22mm	200	$25.08
DSP-284	3.5mm	24mm	200	$25.76
DSP-296	3.5mm	26mm	200	$26.60
DSP-308	3.5mm	28mm	200	$27.80
DSP-293	3.5mm	30mm	200	$29.08
DSP-292	3.5mm	32mm	200	$30.76
DSP-291	3.5mm	36mm	200	$31.84
DSP-290	3.5mm	40mm	200	$34.40

Tolerances
Lengths 0-1.0"	+/-.015"
Lengths 1.125"-2.0"	+/-.020"
Lengths 2.25"-3.0"	+/-.025"
Lengths  3.25" and up	+/-.030"
Lengths 0-24mm	+/- .40mm
Lengths 26mm-50mm	+/- .50mm
Lengths 55mm-60mm	+/- .60mm
Lengths 80mm and up	+/- .75mm

Metric							Imperial Inches
Nominal Dia.		M2	M2.5	M3	M4	M5	M6	M8	1/16"	5/64"	3/32"	1/8"	5/32"	3/16"	7/32"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"
Act. Dia	Min. mm	2.13	2.65	3.15	4.20	5.25	6.25	8.30	0.066	0.083	0.099	0.131	0.162	0.194	0.226	0.258	0.321	0.385	0.448	0.513	0.640
	Max. mm	2.25	2.78	3.30	4.40	5.50	6.50	8.63	0.069	0.086	0.103	0.135	0.137	0.199	0.232	0.264	0.330	0.395	0.459	0.524	0.653
Wall Thickness		*	*	*	*	*	*	*	0.012	0.018	0.022	0.028	0.032	0.040	0.048	0.048	0.062	0.077	0.077	0.094	0.125
Suggested	Min. mm	2.00	2.50	3.00	4.00	5.10	6.00	8.00	0.062	0.078	0.094	0.125	0.156	0.187	0.219	0.250	0.312	0.375	0.437	0.500	0.625
Hole Size	Max. mm	2.10	2.60	3.10	4.12	5.12	6.12	8.15	0.065	0.081	0.097	0.129	0.160	0.192	0.224	0.256	0.318	0.382	0.445	0.510	0.636
Shear Strength Lbs		562	876	1236	2158	3372	4945	8767	*	*	*	*	*	*	*	*	*	*	*	*	*
Shear Strength Lbs 18-8 SS		*	*	*	*	*	*	*	250	460	670	1090	1600	2425	3400	4100	6300	9500	11500	15800	18800
Shear Strength Lbs 420 SS		*	*	*	*	*	*	*	430	800	1150	1875	2750	4150	5850	7050	10800	16300	19800	27100	46000
