Steel Taper Pins
| Taper Pins - Plain Steel Chamfered Ends Diameter Tolerance +.0013"/-.0007" |
||||||
| Part # | Taper Pin Size | Major Diameter | Small End Diameter | Length | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|
| DMTP-030 | 0 | .156" | .094" | 3.00" | 100 | $77.62 |
| DMTP-029 | 0 | .156" | .103" | 2.50" | 100 | $68.68 |
| DMTP-028 | 0 | .156" | 0.114 | 2.00" | 100 | $50.50 |
| DMTP-027 | 0 | .156" | .119" | 1.75" | 100 | $52.12 |
| DMTP-026 | 0 | .156" | .125" | 1.50" | 100 | $43.70 |
| DMTP-243 | 0 | .156" | .130" | 1.25" | 50 | $21.08 |
| DMTP-025 | 0 | .156" | .132" | 1.125" | 100 | $38.94 |
| DMTP-024 | 0 | .156" | .135" | 1.00" | 100 | $33.76 |
| DMTP-023 | 0 | .156" | .140" | .750" | 100 | $29.34 |
| DMTP-238 | 1 | .172" | .089" | 4.00" | 25 | $28.44 |
| DMTP-038 | 1 | .172" | .110" | 3.00" | 100 | $79.52 |
| DMTP-037 | 1 | .172" | .119" | 2.50" | 100 | $70.56 |
| DMTP-225 | 1 | .172" | .130" | 2.00" | 50 | $29.46 |
| DMTP-035 | 1 | .172" | .135" | 1.75" | 100 | $54.66 |
| DMTP-036 | 1 | .172" | .135" | 1.75" | 100 | $55.72 |
| DMTP-034 | 1 | .172" | .141" | 1.50" | 100 | $46.02 |
| DMTP-033 | 1 | .172" | .146" | 1.25" | 100 | $41.26 |
| DMTP-032 | 1 | .172" | .151" | 1.00" | 100 | $36.48 |
| DMTP-031 | 1 | .172" | .156" | .750" | 100 | $34.22 |
| DMTP-229 | 2 | .193" | .110" | 4.00" | 25 | $29.02 |
| DMTP-048 | 2 | .193" | .119" | 3.50" | 100 | $95.00 |
| DMTP-047 | 2 | .193" | .131" | 3.00" | 100 | $82.58 |
| DMTP-046 | 2 | .193" | .140" | 2.50" | 100 | $70.26 |
| DMTP-045 | 2 | .193" | .146" | 2.25" | 100 | $69.18 |
| DMTP-044 | 2 | .193" | .151" | 2.00" | 100 | $58.92 |
| DMTP-043 | 2 | .193" | .156" | 1.75" | 100 | $54.02 |
| DMTP-042 | 2 | .193" | .162" | 1.50" | 100 | $49.34 |
| DMTP-041 | 2 | .193" | .167" | 1.25" | 100 | $44.50 |
| DMTP-040 | 2 | .193" | .172" | 1.00" | 100 | $40.00 |
| DMTP-039 | 2 | .193" | .177" | .750" | 100 | $34.98 |
| DMTP-022 | 2/0 | .141" | .089" | 2.50" | 100 | $68.68 |
| DMTP-021 | 2/0 | .141" | .094" | 2.25" | 100 | $62.52 |
| DMTP-020 | 2/0 | .141" | .099" | 2.00" | 25 | $50.50 |
| DMTP-019 | 2/0 | .141" | .110" | 1.50" | 100 | $43.70 |
| DMTP-018 | 2/0 | .141" | .115" | 1.25" | 100 | $38.94 |
| DMTP-017 | 2/0 | .141" | .120" | 1.00" | 100 | $33.76 |
| DMTP-016 | 2/0 | .141" | .125" | .750" | 100 | $29.34 |
| DMTP-233 | 3 | .219" | .136" | 4.00" | 20 | $23.88 |
| DMTP-057 | 3 | .219" | .146" | 3.50" | 100 | $98.10 |
| DMTP-056 | 3 | .219" | .157" | 3.00" | 100 | $85.66 |
| DMTP-055 | 3 | .219" | .167" | 2.50" | 100 | $73.22 |
| DMTP-054 | 3 | .219" | .172" | 2.25" | 100 | $91.92 |
| DMTP-232 | 3 | .219" | .177" | 2.00" | 50 | $32.80 |
| DMTP-052 | 3 | .219" | .183" | 1.75" | 100 | $57.26 |
| DMTP-053 | 3 | .219" | .183" | 1.75" | 100 | $62.04 |
| DMTP-051 | 3 | .219" | .188" | 1.50" | 100 | $53.68 |
| DMTP-050 | 3 | .219" | .193" | 1.25" | 100 | $47.68 |
| DMTP-049 | 3 | .219" | .198" | 1.00" | 100 | $42.92 |
| DMTP-260 | 3 | .219" | .203" | .750" | 50 | $20.14 |
| DMTP-015 | 3/0 | .125" | .094" | 1.50" | 100 | $43.70 |
| DMTP-014 | 3/0 | .125" | .099" | 1.25" | 100 | $38.94 |
| DMTP-013 | 3/0 | .125" | .104" | 1.00" | 100 | $33.76 |
| DMTP-012 | 3/0 | .125" | .109" | .750" | 100 | $29.34 |
| DMTP-250 | 3/0 | .125" | .115" | .500" | 100 | $31.56 |
| DMTP-240 | 4 | .250" | .156" | 4.50" | 20 | $27.60 |
| DMTP-068 | 4 | .250" | .167" | 4.00" | 100 | $115.20 |
| DMTP-067 | 4 | .250" | .188" | 3.00" | 100 | $90.40 |
| DMTP-241 | 4 | .250" | .193" | 2.75" | 25 | $23.16 |
| DMTP-066 | 4 | .250" | .198" | 2.50" | 100 | $77.86 |
| DMTP-064 | 4 | .250" | .203" | 2.25" | 100 | $65.34 |
| DMTP-063 | 4 | .250" | .208" | 2.00" | 100 | $65.34 |
| DMTP-062 | 4 | .250" | .214" | 1.75" | 100 | $78.66 |
| DMTP-061 | 4 | .250" | .219" | 1.50" | 100 | $57.26 |
| DMTP-060 | 4 | .250" | .224" | 1.25" | 100 | $52.68 |
| DMTP-059 | 4 | .250" | .229" | 1.00" | 100 | $47.68 |
| DMTP-304 | 4 | .250" | .234" | .750" | 50 | $23.16 |
| DMTP-239 | 4/0 | .109" | .078" | 1.50" | 50 | $25.08 |
| DMTP-010 | 4/0 | .109" | .082" | 1.25" | 100 | $38.94 |
| DMTP-254 | 4/0 | .109" | .088" | 1.00" | 100 | $37.00 |
| DMTP-006 | 4/0 | .109" | .093" | .750" | 100 | $29.34 |
| DMTP-255 | 4/0 | .109" | .099" | .500" | 100 | $31.56 |
| DMTP-011 | 4/0 | .125" | .114" | .500" | 100 | $30.38 |
| DMTP-266 | 5 | .289" | .143" | 7.00" | 20 | $36.68 |
| DMTP-265 | 5 | .289" | .164" | 6.00" | 20 | $36.68 |
| DMTP-081 | 5 | .289" | .185" | 5.00" | 100 | $144.50 |
| DMTP-080 | 5 | .289" | .195" | 4.50" | 100 | $132.16 |
| DMTP-079 | 5 | .289" | .206" | 4.00" | 100 | $119.76 |
| DMTP-078 | 5 | .289" | .216" | 3.50" | 100 | $107.40 |
| DMTP-077 | 5 | .289" | .227" | 3.00" | 100 | $95.00 |
| DMTP-076 | 5 | .289" | .231" | 2.75" | 100 | $93.64 |
| DMTP-075 | 5 | .289" | .237" | 2.50" | 100 | $82.58 |
| DMTP-074 | 5 | .289" | .242" | 2.25" | 100 | $76.26 |
| DMTP-073 | 5 | .289" | .247" | 2.00" | 100 | $70.26 |
| DMTP-072 | 5 | .289" | .253" | 1.75" | 100 | $65.34 |
| DMTP-071 | 5 | .289" | .258" | 1.50" | 100 | $62.04 |
| DMTP-070 | 5 | .289" | .262" | 1.25" | 100 | $57.26 |
| DMTP-069 | 5 | .289" | .268" | 1.00" | 100 | $52.68 |
| DMTP-252 | 5/0 | .094" | .063" | 1.50" | 50 | $26.88 |
| DMTP-005 | 5/0 | .094" | .067" | 1.25" | 100 | $47.44 |
| DMTP-003 | 5/0 | .094" | .073" | 1.00" | 100 | $45.20 |
| DMTP-256 | 5/0 | .094" | .084" | .500" | 50 | $23.78 |
| DMTP-289 | 6 | .341" | .216" | 6.00" | 10 | $24.92 |
| DMTP-174 | 6 | .341" | .226" | 5.50" | 100 | $222.84 |
| DMTP-173 | 6 | .341" | .237" | 5.00" | 10 | $192.68 |

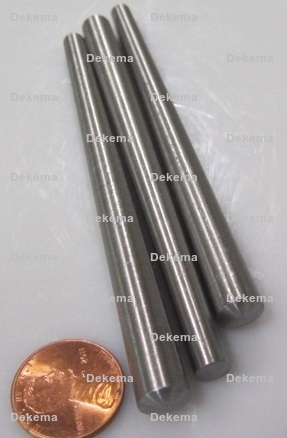

| DMTP-093 | 6 | .341" | .247" | 4.50" | 100 | $174.10 |
| DMTP-092 | 6 | .341" | .258" | 4.00" | 100 | $155.48 |
| DMTP-091 | 6 | .341" | .268" | 3.50" | 100 | $137.96 |
| DMTP-288 | 6 | .341" | .273" | 3.25" | 20 | $28.60 |
| DMTP-090 | 6 | .341" | .279" | 3.00" | 100 | $124.52 |
| DMTP-089 | 6 | .341" | .284" | 2.75" | 100 | $264.06 |
| DMTP-088 | 6 | .341" | .289" | 2.50" | 100 | $109.06 |
| DMTP-087 | 6 | .341" | .294" | 2.25" | 100 | $106.64 |
| DMTP-086 | 6 | .341" | .299" | 2.00" | 100 | $93.44 |
| DMTP-085 | 6 | .341" | .305" | 1.75" | 100 | $85.66 |
| DMTP-084 | 6 | .341" | .310" | 1.50" | 100 | $79.86 |
| DMTP-083 | 6 | .341" | .314" | 1.25" | 100 | $70.26 |
| DMTP-082 | 6 | .341" | .320" | 1.00" | 100 | $63.02 |
| DMTP-002 | 6/0 | .078" | .057" | 1.00" | 100 | $45.20 |

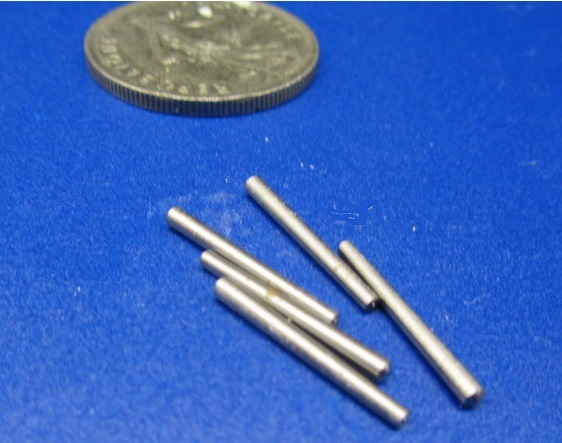

| DMTP-001 | 6/0 | .078" | .062" | .750" | 100 | $45.20 |
| DMTP-253 | 6/0 | .078" | .068" | .500" | 50 | $23.78 |
| DMTP-186 | 7 | .409" | .284" | 6.00" | 10 | $36.20 |
| DMTP-185 | 7 | .409" | .294" | 5.50" | 25 | $84.00 |
| DMTP-184 | 7 | .409" | .305" | 5.00" | 25 | $75.50 |
| DMTP-183 | 7 | .409" | .315" | 4.50" | 25 | $68.50 |
| DMTP-182 | 7 | .409" | .326" | 4.00" | 1 | $62.00 |
| DMTP-181 | 7 | .409" | .336" | 3.50" | 100 | $216.10 |
| DMTP-271 | 7 | .409" | .341" | 3.25" | 10 | $21.88 |
| DMTP-180 | 7 | .409" | .347" | 3.00" | 100 | $188.02 |
| DMTP-179 | 7 | .409" | .352" | 2.75" | 5 | $174.10 |
| DMTP-178 | 7 | .409" | .357" | 2.50" | 100 | $160.10 |
| DMTP-177 | 7 | .409" | .362" | 2.25" | 100 | $171.78 |
| DMTP-176 | 7 | .409" | .367" | 2.00" | 100 | $132.16 |
| DMTP-175 | 7 | .409" | .373" | 1.75" | 100 | $164.52 |
| DMTP-257 | 7/0 | .063" | .047" | .750" | 50 | $25.14 |
| DMTP-258 | 7/0 | .063" | .052" | .500" | 50 | $24.40 |
| DMTP-279 | 8 | .492" | .346" | 7.00" | 5 | $28.06 |
| DMTP-197 | 8 | .492" | .367" | 6.00" | 25 | $107.50 |
| DMTP-196 | 8 | .492" | .378" | 5.50" | 5 | $21.30 |
| DMTP-195 | 8 | .492" | .388" | 5.00" | 25 | $90.00 |

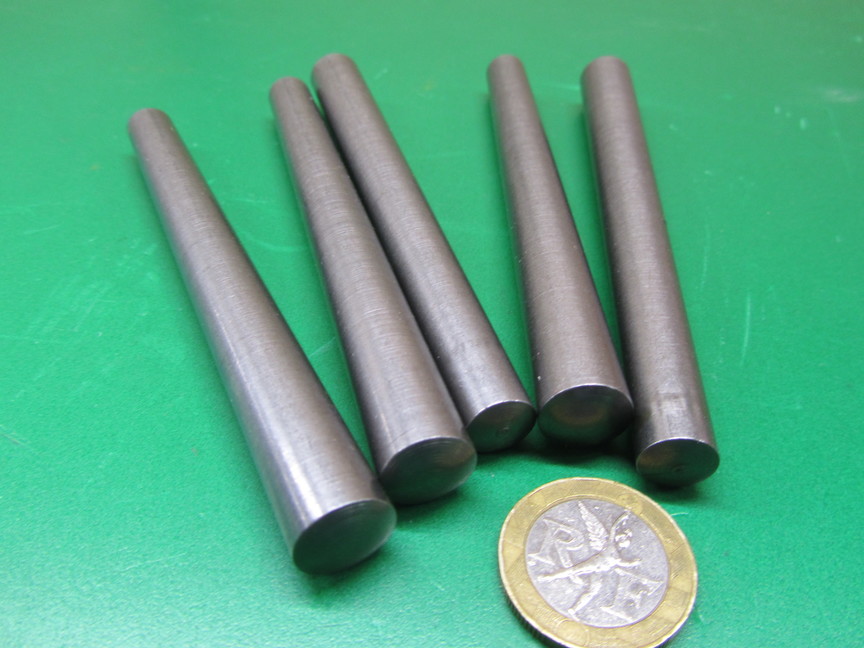

| DMTP-194 | 8 | .492" | .398" | 4.50" | 25 | $79.00 |
| DMTP-193 | 8 | .492" | .409" | 4.00" | 25 | $70.00 |
| DMTP-192 | 8 | .492" | .419" | 3.50" | 1 | $64.00 |
| DMTP-191 | 8 | .492" | .430" | 3.00" | 1 | $56.00 |
| DMTP-190 | 8 | .492" | .435" | 2.75" | 25 | $56.50 |
| DMTP-189 | 8 | .492" | .440" | 2.50" | 25 | $47.50 |
| DMTP-188 | 8 | .492" | .450" | 2.00" | 25 | $40.00 |
| DMTP-187 | 8 | .492" | .455" | 1.75" | 25 | $37.00 |
| DMTP-278 | 8 | .492" | .461" | 1.50" | 20 | $30.28 |
| DMTP-293 | 9 | .591" | .445" | 7.00" | 3 | $24.48 |
| DMTP-208 | 9 | .591" | .466" | 6.00" | 25 | $135.00 |
| DMTP-207 | 9 | .591" | .477" | 5.50" | 25 | $125.50 |
| DMTP-206 | 9 | .591" | .487" | 5.00" | 25 | $114.00 |
| DMTP-205 | 9 | .591" | .497" | 4.50" | 25 | $104.00 |
| DMTP-204 | 9 | .591" | .508" | 4.00" | 25 | $93.50 |
| DMTP-203 | 9 | .591" | .518" | 3.50" | 5 | $84.00 |
| DMTP-202 | 9 | .591" | .529" | 3.00" | 25 | $74.50 |
| DMTP-201 | 9 | .591" | .533" | 2.75" | 25 | $94.50 |
| DMTP-200 | 9 | .591" | .539" | 2.50" | 25 | $69.50 |
| DMTP-199 | 9 | .591" | .544" | 2.25" | 25 | $69.50 |
| DMTP-198 | 9 | .591" | .549" | 2.00" | 25 | $55.50 |
| DMTP-298 | 10 | .706" | .560" | 7.00" | 3 | $28.32 |
| DMTP-216 | 10 | .706" | .581" | 6.00" | 25 | $179.50 |
| DMTP-215 | 10 | .706" | .591" | 5.50" | 25 | $179.50 |
| DMTP-214 | 10 | .706" | .602" | 5.00" | 25 | $149.50 |
| DMTP-213 | 10 | .706" | .612" | 4.50" | 25 | $145.50 |
| DMTP-212 | 10 | .706" | .623" | 4.00" | 5 | $121.50 |
| DMTP-210 | 10 | .706" | .633" | 3.50" | 25 | $117.50 |
| DMTP-211 | 10 | .706" | .633" | 3.50" | 25 | $117.50 |
| DMTP-209 | 10 | .706" | .644" | 3.00" | 25 | $94.00 |
| DMTP-285 | 10 | .706" | .664" | 2.00" | 2 | $30.04 |
