18-8 Stainless Knurled Narrow Head Thumb Screws
Fully Threaded - Listed Length is measured from under the head
| Part # | Thread Size | Head Diameter | Head Height | Length | Price Each | |
|---|---|---|---|---|---|---|
| Slotted | ||||||
| MTHS-861 | 4-40 | .250" | .125" | .375" | $15.94 | |
| MTHS-856 | 4-40 | .187" | .375" | 1.00" | $10.14 | |
| MTHS-883 | 4-40 | .250" | .500" | 1.00" | $10.87 | |
| MTHS-864 | 4-48 | .250" | .500" | .500" | $21.21 | |
| MTHS-892 | 4-48 | .250" | .500" | .750" | $21.65 | |
| MTHS-890 | 4-48 | .250" | .500" | 1.00" | $23.75 | |
| MTHS-889 | 6-32 | .187" | .375" | 1.00" | $10.06 | |
| MTHS-914 | 8-32 | .187" | .375" | .500" | $9.45 | |
| MTHS-662 | 8-32 | .187" | .375" | 1.00" | $10.14 | |
| MTHS-657 | 8-40 | .250" | .500" | .500" | $25.01 | |
| MTHS-655 | 8-40 | .250" | .500" | .750" | $25.81 | |
| MTHS-653 | 8-40 | .250" | .500" | 1.00" | $27.86 | |
| MTHS-663 | 10-24 | .250" | .500" | .500" | $11.40 | |
| MTHS-650 | 10-24 | .250" | .500" | 1.00" | $10.96 | |
| MTHS-649 | 10-32 | .250" | .500" | .500" | $8.63 | |
| MTHS-648 | 10-32 | .250" | .500" | 1.00" | $11.92 | |
| MTHS-645 | 1/4"-20 | .312" | .500" | .500" | $10.06 | |
| MTHS-673 | 1/4"-20 | .312" | .500" | 1.00" | $11.92 | |
| MTHS-585 | 1/4"-20 | .312" | .500" | 1.50" | $13.96 | |
| MTHS-583 | 1/4"-28 | .312" | .500" | .500" | $26.92 | |
| MTHS-581 | 1/4"-28 | .312" | .500" | 1.00" | $27.36 | |
| MTHS-579 | 1/4"-28 | .312" | .500" | 1.50" | $30.22 | |
| MTHS-577 | 5/16"-18 | .375" | .625" | .500" | $16.96 | |
| MTHS-575 | 5/16"-18 | .375" | .625" | 1.00" | $17.17 | |
| MTHS-573 | 5/16"-18 | .375" | .625" | 1.50" | $17.93 | |
| Unslotted | ||||||
| MTHS-873 | 4-40 | .250" | .125" | .375" | $12.76 | |
| MTHS-859 | 4-40 | .187" | .375" | .625" | $11.61 | |
| MTHS-1043 | 4-40 | .187" | .375" | 1.00" | $9.30 | |
| MTHS-875 | 4-40 | .250" | .500" | 1.00" | $9.97 | |
| MTHS-862 | 4-48 | .250" | .500" | .500" | $16.44 | |
| MTHS-893 | 4-48 | .250" | .500" | .750" | $16.88 | |
| MTHS-891 | 4-48 | .250" | .500" | 1.00" | $18.98 | |
| MTHS-888 | 6-32 | .187" | .375" | .375" | $12.01 | |
| MTHS-874 | 6-32 | .187" | .375" | .625" | $11.99 | |
| MTHS-419 | 6-32 | .187" | .375" | 1.00" | $7.98 | |
| MTHS-884 | 6-32 | .187" | .375" | 1.25" | $12.22 | |
| MTHS-877 | 8-32 | .187" | .375" | .375" | $11.71 | |

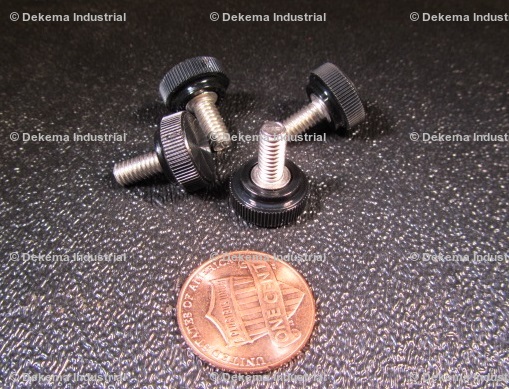

| MTHS-421 | 8-32 | .187" | .375" | .500" | $8.92 | |
| MTHS-788 | 8-32 | .187" | .375" | .750" | $11.99 | |
| MTHS-426 | 8-32 | .187" | .375" | 1.00" | $9.30 | |

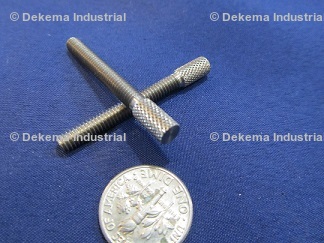

| MTHS-659 | 8-32 | .187" | .375" | 1.25" | $12.22 | |
| MTHS-658 | 8-40 | .250" | .500" | .500" | $20.26 | |
| MTHS-656 | 8-40 | .250" | .500" | .750" | $21.02 | |
| MTHS-643 | 8-40 | .250" | .500" | 1.00" | $23.10 | |
| MTHS-427 | 10-24 | .250" | .500" | .500" | $9.97 | |
| MTHS-651 | 10-24 | .250" | .500" | 1.00" | $9.45 | |
| MTHS-433 | 10-32 | .250" | .500" | .500" | $8.40 | |
| MTHS-647 | 10-32 | .250" | .500" | .750" | $12.30 | |
| MTHS-440 | 10-32 | .250" | .500" | 1.00" | $9.45 | |
| MTHS-646 | 10-32 | .250" | .500" | 1.25" | $12.83 | |
| MTHS-443 | 1/4"-20 | .312" | .500" | .500" | $10.06 | |
| MTHS-445 | 1/4"-20 | .312" | .500" | 1.00" | $11.86 | |
| MTHS-652 | 1/4"-20 | .312" | .500" | 1.25" | $12.45 | |
| MTHS-654 | 1/4"-20 | .312" | .500" | 1.50" | $12.68 | |
| MTHS-584 | 1/4"-28 | .312" | .500" | .500" | $24.38 | |
| MTHS-582 | 1/4"-28 | .312" | .500" | 1.00" | $24.82 | |
| MTHS-580 | 1/4"-28 | .312" | .500" | 1.50" | $36.24 | |
| MTHS-578 | 5/16"-18 | .375" | .625" | .500" | $14.93 | |

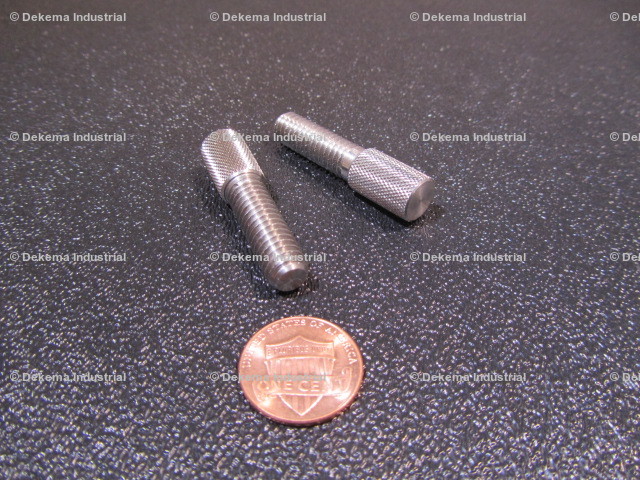

| MTHS-564 | 5/16"-18 | .375" | .625" | 1.00" | $15.68 | |
| MTHS-586 | 5/16"-18 | .375" | .625" | 1.50" | $16.44 | |
